| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,085 pcs
|
1085 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

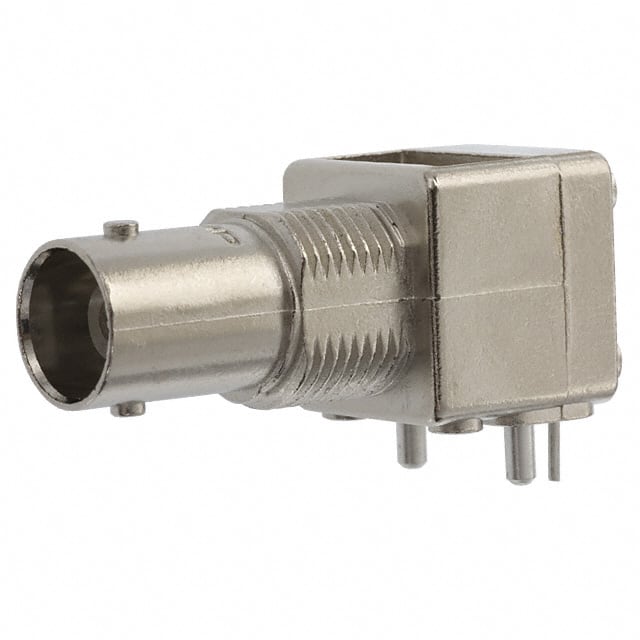

The TE Connectivity 5227661-1 is a BNC coaxial connector designed for RF applications. It is a jack (female socket) connector with a 50 Ohm impedance and a maximum frequency rating of 4 GHz. The connector features a right angle orientation and is designed for panel mount with through hole termination. It uses a bulkhead front side nut mounting feature and a bayonet lock fastening type for secure connection. The center contact is made of phosphor bronze, and the housing is silver in color. Both contact and shield terminations are solder type. This connector is suitable for PCB mounting and provides reliable RF performance up to 4 GHz.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.25 | $6.25 |
| 10+ | $5.31 | $5.31 |
| 35+ | $4.86 | $4.86 |
| 70+ | $4.63 | $4.63 |
| 105+ | $4.50 | $4.50 |
| 280+ | $4.20 | $4.20 |
| 525+ | $4.01 | $4.01 |
| 1,015+ | $3.83 | $3.83 |
| 2,520+ | $3.59 | $3.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel mount, through hole, right angle.
50 Ohm.
4 GHz.
BNC jack, female socket.
Bayonet lock.
Solder.
Phosphor bronze.
