| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,090 pcs
|
6090 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Durability (Mating Cycles) | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature | |
| Shield Termination | |
| VSWR |

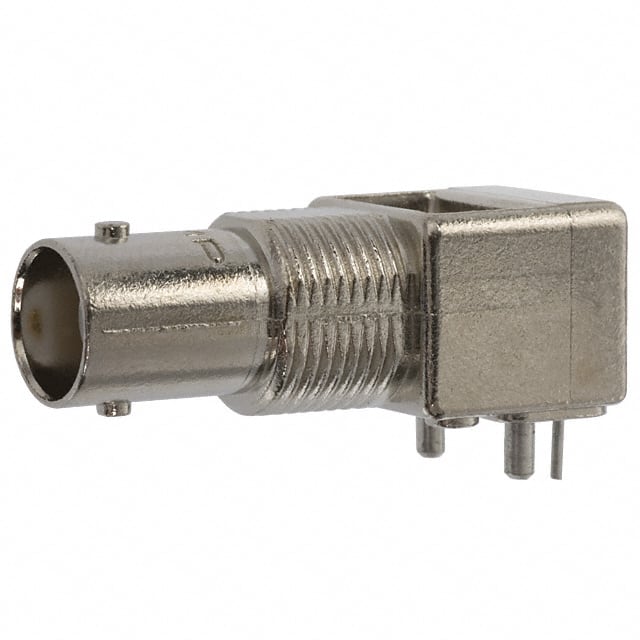

The 5413879-1 is a BNC coaxial connector from TE Connectivity designed for 50 Ohm systems. This jack features a female socket contact with a right-angle PCB mounting configuration, making it suitable for space-constrained applications. The connector supports frequencies up to 4 GHz with a VSWR of 1.3 at that frequency.
Mechanically, the connector includes a bayonet lock fastening type for quick and secure mating. It mounts via panel mount with a bulkhead front side nut and through-hole solder terminations for both the center contact and shield. The housing is finished in silver, and the center contact is made of phosphor bronze for reliable conductivity and durability.
The operating temperature range is -55°C to 85°C, and the connector is rated for 500 mating cycles. It is commonly used in telecommunications, test equipment, and RF systems where reliable 50 Ohm connections are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $10.36 | $10.36 |
| 10+ | $8.80 | $8.80 |
| 35+ | $8.06 | $8.06 |
| 70+ | $7.67 | $7.67 |
| 105+ | $7.46 | $7.46 |
| 280+ | $6.96 | $6.96 |
| 525+ | $6.66 | $6.66 |
| 1,015+ | $6.36 | $6.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
4 GHz.
Panel mount, through hole, right angle.
-55°C to 85°C.
500 cycles.
Solder for both contact and shield termination.
