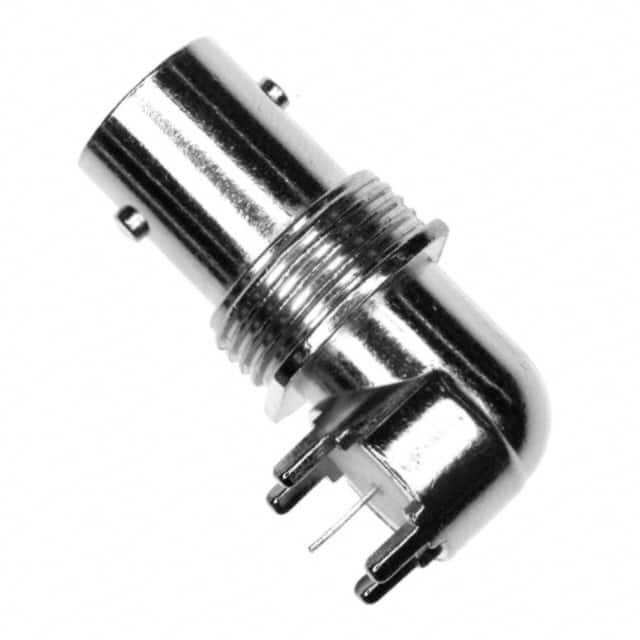

This TE Connectivity BNC coaxial connector (5-1634556-0) is a 50 Ohm female jack with a right-angle body design for space-constrained PCB applications. It features a bayonet lock fastening mechanism and bulkhead front-side nut mounting for secure panel installation. The center contact is made of phosphor bronze, and both contact and shield terminations are solder type.
Electrical performance supports frequencies up to 4 GHz, suitable for RF signal applications. The silver housing provides basic environmental protection. This connector is designed for through-hole PCB mounting with a right-angle orientation, enabling compact layouts. RoHS3 and REACH compliant (unverified).
50 Ohm.
4 GHz.
Panel mount, through hole, right angle with bulkhead front side nut.
Solder for both contact and shield.
Bayonet lock.
