| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,625 pcs
|
2625 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
490 pcs
|
490 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 11:15:09 |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

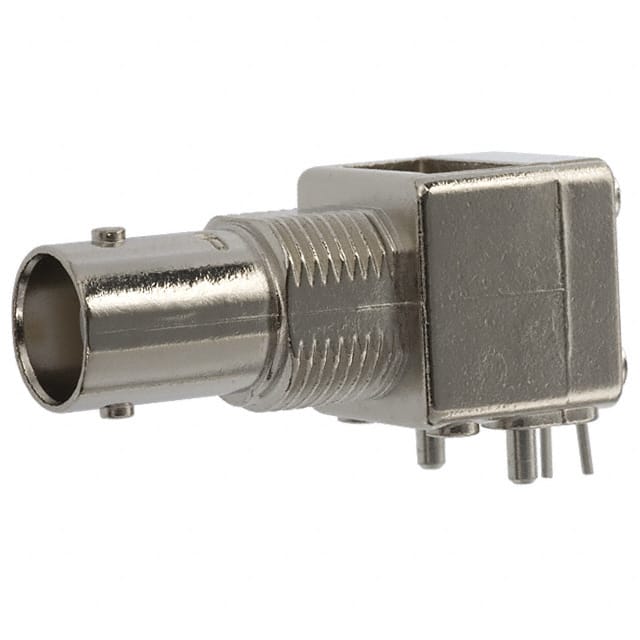

TE Connectivity 5227677-1 is a BNC connector jack with female socket contact. It features 50 Ohm characteristic impedance and supports frequencies up to 4 GHz, making it suitable for RF applications.
The connector has a right angle orientation and is designed for panel mount with bulkhead front side nut and through hole mounting. It uses a bayonet lock fastening mechanism and solder termination for both the center contact and shield.
The center contact is made of phosphor bronze and the housing color is silver. This single port connector is listed as RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $7.36 | $7.36 |
| 10+ | $6.25 | $6.25 |
| 35+ | $5.73 | $5.73 |
| 70+ | $5.45 | $5.45 |
| 105+ | $5.30 | $5.30 |
| 280+ | $4.94 | $4.94 |
| 525+ | $4.73 | $4.73 |
| 1,015+ | $4.51 | $4.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Panel mount, through hole, right angle with bulkhead front side nut.
50 Ohm.
4 GHz.
BNC style, jack female socket.
Solder termination for both contact and shield.
Bayonet lock.
