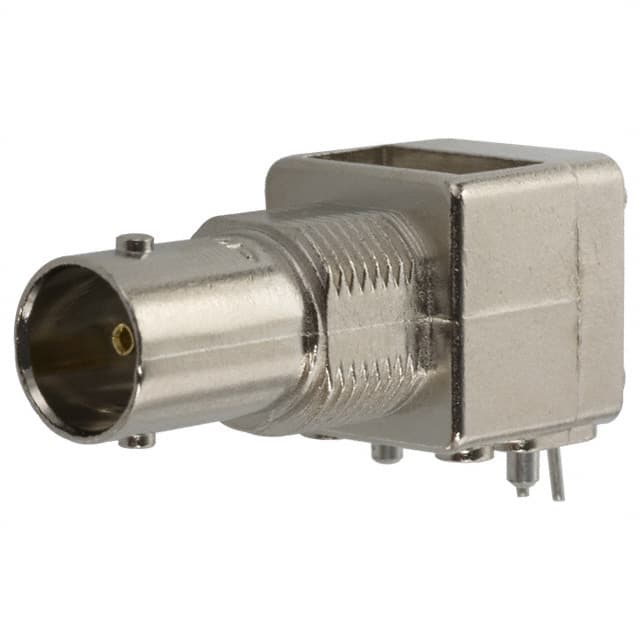

The TE Connectivity 1-1337494-0 is a BNC RF connector designed for printed circuit board applications. It features a jack (female socket) gender with a right angle body style, enabling compact PCB layouts. The connector offers a 50 Ohm impedance and is rated for operation up to 4 GHz.
This connector supports panel mount with a bulkhead front side nut and through hole PCB mounting. The contact and shield are terminated via solder. The body is constructed from zinc with nickel plating, while the center contact is phosphor bronze with gold plating. The dielectric material is polyethylene.
The connector includes a board guide feature and requires a panel cutout of 12.0 mm x 12.9 mm D-shape. It is designed for commercial grade applications and is RoHS and ELV compliant.
The impedance is 50 Ohm.
The maximum frequency is 4 GHz.
It supports panel mount (bulkhead front side nut) and through hole right angle PCB mounting.
The body is zinc with nickel plating.
The center contact is phosphor bronze with gold plating.
The maximum operating temperature is 85 °C.
