| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

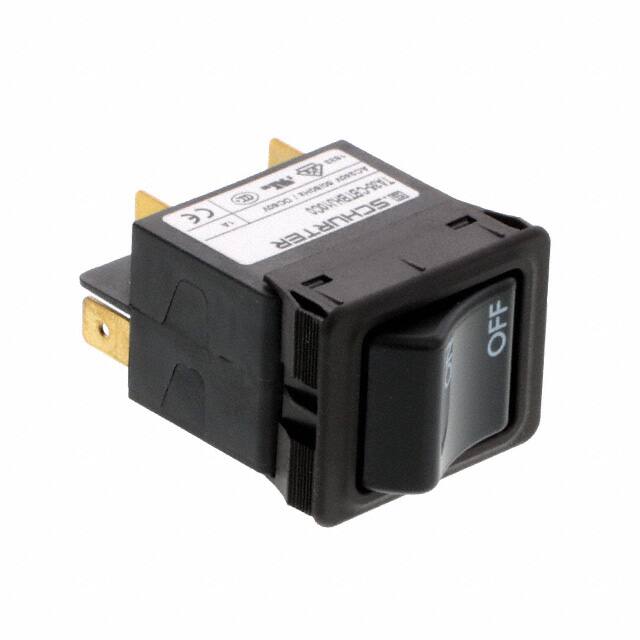

The Schurter Inc. 4435.0212 is a 2-pole thermal circuit breaker designed for equipment protection. It utilizes rocker actuation and offers a rated voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and 60 VDC. The device has a rated current range of 0.05 to 20 A AC, with magnetic tripping up to 16 A.
This circuit breaker is built for reliability, featuring a mechanical lifetime of 50,000 switching cycles. It operates within a temperature range of -30°C to 60°C and has a degree of protection of IP40 on the front side. The TA35 series breaker is suitable for various industrial applications, including power tools, medical equipment, and industrial appliances.
Key technical specifications include a conditional short circuit capacity of 2 kA at 240 VAC and dielectric strength exceeding 2.5 kV at 50 Hz. It also offers robust vibration and shock resistance according to IEC standards. The breaker is designed for panel mounting.
The rated voltage is 240 VAC (IEC) or 277 VAC (UL/CSA) and 60 VDC.
The allowable operation temperature range is -30°C to 60°C.
The front side has IP40 protection according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
It uses rocker actuation.
The dielectric strength is greater than 2.5 kV at 50 Hz and greater than 4 kV impulse (1.2/50 μs).
