| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

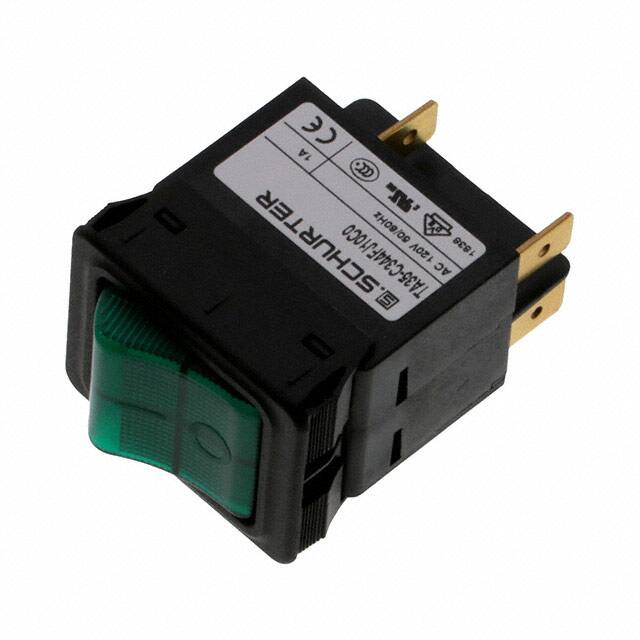

The Schurter Inc. 4435.0392 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It features a rocker actuation and a current rating of 1A, with a maximum AC voltage rating of 240VAC and a DC rating of 60VDC.
This circuit breaker offers thermal tripping and is suitable for applications requiring short-circuit protection. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30°C to 60°C. The device is panel mountable and includes green illumination with a nominal voltage of 120V.
Key technical specifications include a conditional short circuit capacity of 2 kA at 240 VAC, dielectric strength greater than 2.5 kV at 50 Hz, and insulation resistance greater than 100 MΩ at 500 VDC. It also meets IP40 degree of protection on the front side.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and equipment for construction. Its robust design and configurable options make it a versatile component for various industrial and commercial uses.
The rated current for this circuit breaker is 1A.
The voltage ratings are 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
This circuit breaker has 2 poles.
The circuit breaker uses rocker actuation.
The allowable operating temperature range is -30°C to 60°C.
Yes, it is RoHS3 Compliant.
