| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

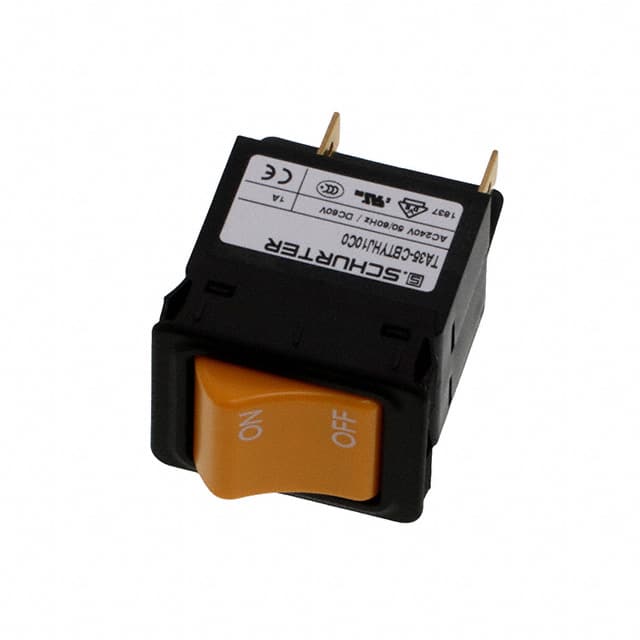

The Schurter Inc. 4435.0351 is a 2-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. It offers a rated current of 1A and can handle AC voltages up to 240VAC and DC voltages up to 60VDC.
This circuit breaker provides thermal tripping and is designed for applications requiring reliable short-circuit protection. It has a conditional short circuit capacity of 2 kA at 240 VAC. The device operates within a temperature range of -30°C to 60°C and has a mechanical lifetime of 50,000 switching cycles.
Key electrical specifications include a dielectric strength of over 2.5 kV (50 Hz) and an impulse dielectric strength of over 4 kV. The insulation resistance is rated at over 100 MΩ at 500 VDC. The front side offers an IP40 degree of protection.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The operating voltage is 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
The operating temperature range is -30°C to 60°C.
The degree of protection is IP40 according to IEC 60529.
The dielectric strength is greater than 2.5kV and impulse withstand is greater than 4kV.
The mechanical lifetime is 50,000 switching cycles.
The mounting type is panel mount.
