| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

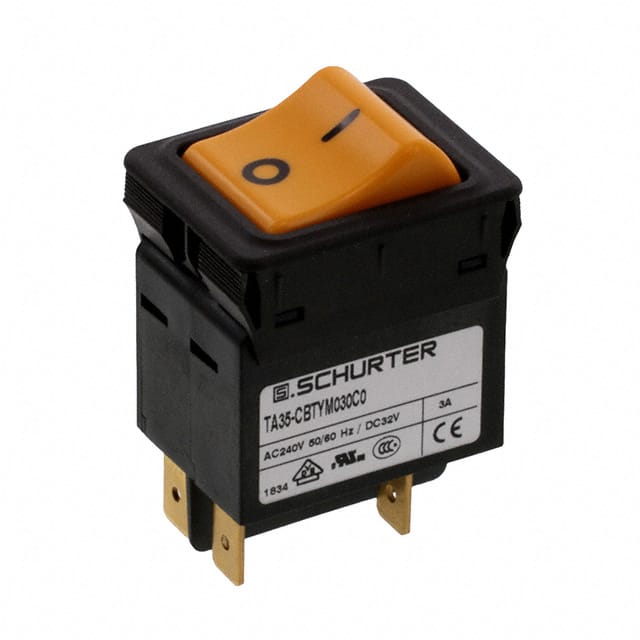

This Schurter Inc. 4435.0127 is a thermal circuit breaker from the TA35 series, suitable for equipment protection. It is a 2-pole device with a rocker actuation type and panel mount design.
The circuit breaker has a rated current of 3A and can handle AC voltages up to 240V and DC voltages up to 60V. It offers a conditional short circuit capacity of 2 kA at 240 VAC. The device is designed for a wide operating temperature range of -30 °C to 60 °C.
Key technical data includes a mechanical lifetime of 50,000 switching cycles and overload trip specifications for both IEC and UL/CSA standards. The front side offers IP40 protection according to IEC 60529.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated current is 3A.
It is rated for 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
The allowable operating temperature range is -30°C to 60°C.
It uses panel mounting with a rocker actuator.
The front side has IP40 protection per IEC 60529.
It is a 2-pole circuit breaker.
