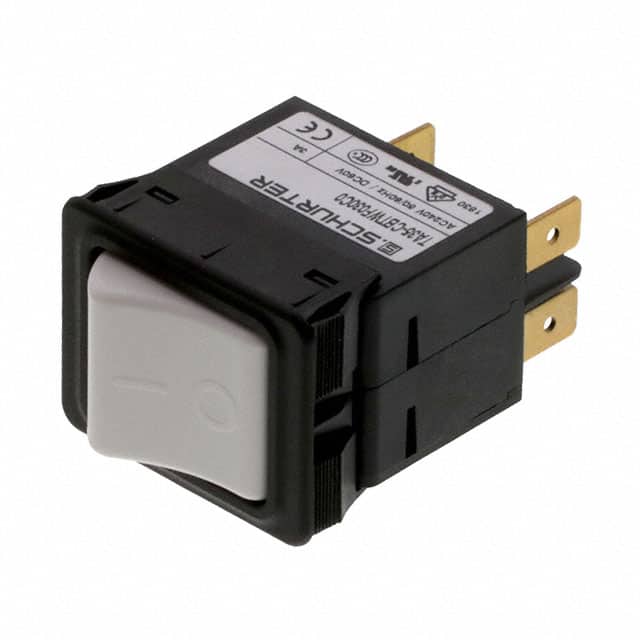

The Schurter Inc. 4435.0283 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It features a rocker actuation type and a panel mount design, making it suitable for various industrial applications.
This circuit breaker offers a rated current range of 0.05 to 20A AC, with a magnetic trip capability up to 16A. It supports AC voltages up to 240 VAC (IEC) or 277 VAC (UL/CSA) and DC voltages up to 60 VDC. The device has a conditional short circuit capacity of 2 kA at 240 VAC.
Key specifications include a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30°C to 60°C. The ingress protection rating for the front side is IP40. It is built with thermal tripping capabilities and offers thermal-magnetic tripping types for comprehensive protection.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its robust construction and specific tripping characteristics ensure safety and operational integrity in demanding environments.
The rated voltage is 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
The allowable operating temperature range is -30°C to 60°C.
The degree of protection on the front side is IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The dielectric strength is greater than 2.5kV at 50Hz.
