| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

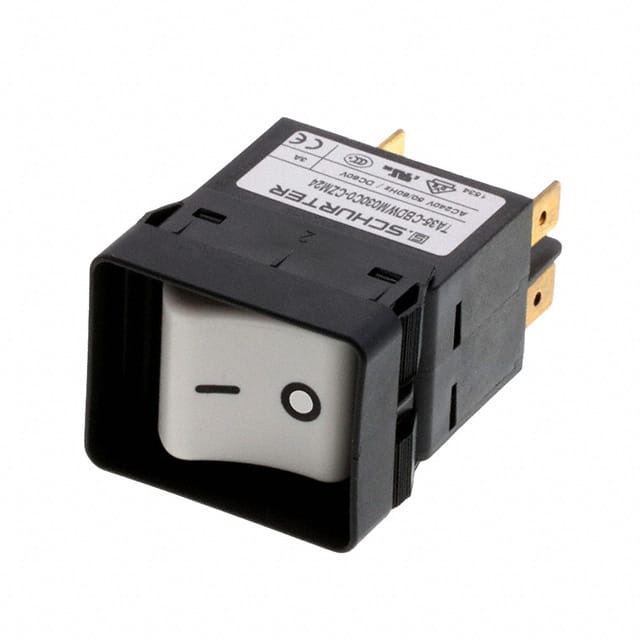

The Schurter Inc. 4435.0337 is a 2-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. It offers a rated current range of 0.05 to 20 A AC (magnetic up to 16 A) and a voltage rating of 240 VAC (IEC) or 277 VAC (UL/CSA), and 60 VDC.
This circuit breaker provides thermal tripping and thermal-magnetic tripping capabilities, with a conditional short circuit capacity of 2 kA at 240 VAC. It is designed for a wide range of applications including power tools, medical and laboratory equipment, industrial appliances, and more. The device operates within an ambient temperature range of -30 °C to 60 °C.
Key specifications include a mechanical lifetime of 50,000 switching cycles, dielectric strength greater than 2.5 kV at 50 Hz, and an insulation resistance greater than 100 MΩ at 500 VDC. The front side offers IP40 protection according to IEC 60529.
It is rated for 240 VAC under IEC standards, 277 VAC under UL/CSA standards, and 60 VDC.
It uses a panel mount configuration.
The device operates reliably between -30 °C and 60 °C.
It supports 50,000 switching cycles.
Yes, the front side provides an IP40 degree of protection according to IEC 60529.
It withstands greater than 2.5 kV at 50 Hz and greater than 4 kV under impulse conditions of 1.2/50 μs.
