Mfr Part #:

PL74-47

Mfr Name: Cinch

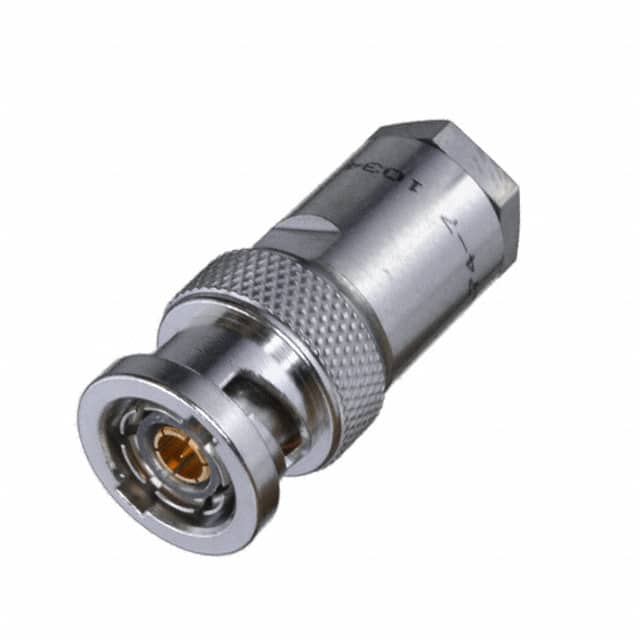

CONN TRB PLUG STR SOLDER

Stock on Request

PL74-47 Description

Short technical summary and product information.

CONN TRB PLUG STR SOLDER

PL74-47 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PL74-47 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

PL75-47

Cinch

TRB twinaxial/triaxial plug connector with male pin concentric contact. Solder termination, wrench clamp shield, bayonet locking, free hanging in-line mounting.

View Part

PL75-47BR

Cinch

TRB plug, male pin (concentric), free hanging, bayonet lock, solder termination. Designed for M17/176-00002 cable, 500 MHz frequency.

View Part

PL74-47BR

Cinch

CONN TRB PLUG STR SOLDER

View Part

PL75FL-47

Cinch

CONN TRB PLUG STR SOLDER

View Part

Home

Category	Coaxial Connector (RF) Assemblies
Manufacturer Name	Cinch
Cable Group	M17/176-00002
Center Contact Material	Beryllium Copper
Connector Style	TRB, Twinaxial/Triaxial
Connector Type	Plug, Male Pin (Concentric)
Contact Termination	Solder
Fastening Type	Bayonet Lock
Frequency	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Wrench Clamp
