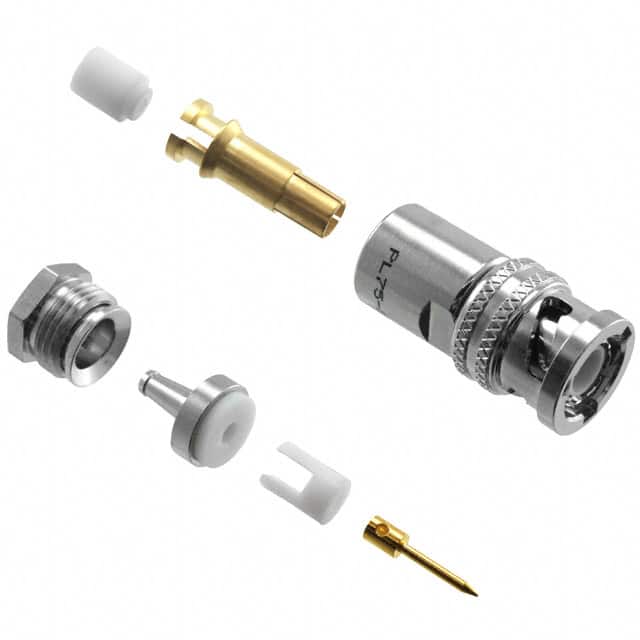

The PL75-47 is a TRB (Twinaxial/Triaxial) plug connector from Cinch Connectivity Solutions, designed as the industry standard for MIL-STD-1553B applications. It accommodates M17/176-00002 cable and provides a reliable connection for data bus networks.
Mechanically, the connector features a solder contact termination, wrench clamp shield termination, and a bayonet lock fastening type. It is a free hanging (in-line) mounting plug with a three lug design. The center contact is made of beryllium copper, and the housing has a silver color. The cable entry diameter is 0.164 inches (4.17 mm).
Electrically, the PL75-47 supports a maximum frequency of 500 MHz and has a non-constant impedance. It has a single port configuration. The part number corresponds to cable group M17/176-00002 as specified in the datasheet table for dash -47.
The connector is declared RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited), though these compliance claims are unverified in source documents.
| Qty | Low | High |
|---|---|---|
| 1+ | $20.90 | $20.90 |
| 10+ | $18.34 | $18.34 |
| 25+ | $17.29 | $17.29 |
| 50+ | $16.50 | $16.50 |
| 100+ | $16.00 | $16.00 |
| 250+ | $15.71 | $15.71 |
| 500+ | $15.64 | $15.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line).
M17/176-00002.
500 MHz.
TRB, Twinaxial/Triaxial.
Non-constant.
