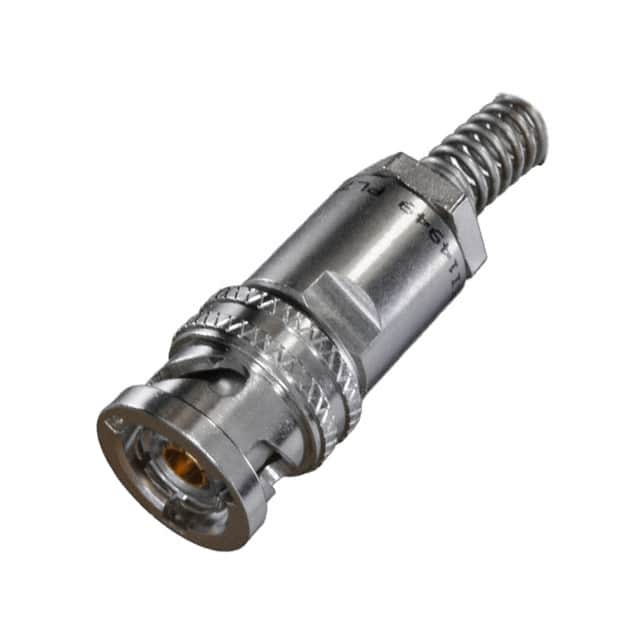

The PL75-47BR is a TRB (Twinaxial/Triaxial) plug connector from Cinch Connectivity Solutions. It features a male pin (concentric) contact and is designed for free hanging (in-line) mounting with a bayonet lock fastening mechanism.
Key specifications include a non-constant impedance, a frequency rating of 500 MHz, and a single port. The center contact is made of beryllium copper and terminated via solder. The shield termination uses a wrench clamp (note: manufacturer page states wrench crimp). The connector accommodates cable group M17/176-00002 and features a three-lug design.
The housing is silver in color. This connector is suitable for applications requiring reliable RF connections in twinaxial or triaxial systems. The bayonet lock ensures secure mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $38.34 | $38.34 |
| 10+ | $32.58 | $32.58 |
| 20+ | $30.15 | $30.15 |
| 50+ | $29.09 | $29.09 |
| 100+ | $27.70 | $27.70 |
| 200+ | $26.02 | $26.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line).
500 MHz.
Non-constant.
TRB plug, male pin (concentric).
M17/176-00002.
Bayonet lock.
Solder.
