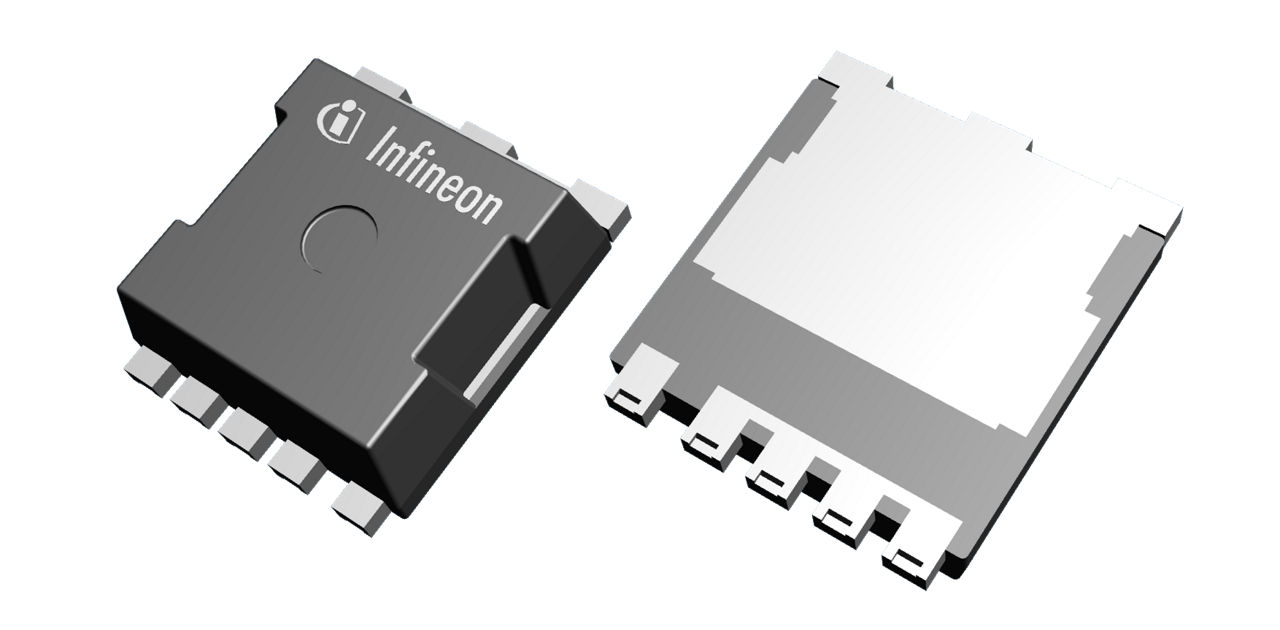

IST011N06NM5 The Infineon IST011N06NM5 is an N-channel MOSFET from the OptiMOSTM5 series. It offers a 60V drain-source voltage and a low on-resistance of 1.1 mΩ.
Mfr Part #:

IST011N06NM5

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon IST011N06NM5 is an N-channel MOSFET from the OptiMOSTM5 series. It offers a 60V drain-source voltage and a low on-resistance of 1.1 mΩ.
✓ Total Stock: 1,600 pcs

IST011N06NM5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,600 pcs
On Request
1600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IST011N06NM5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Package / Case
SVHC Present
Storage Temperature
View Similar Products (0)

IST011N06NM5 Description

Short technical summary and product information.

The Infineon IST011N06NM5 is an N-channel Power MOSFET belonging to the OptiMOSTM5 series. It is designed with a 60V drain-source voltage (VDS) and a maximum on-resistance (RDS(on)) of 1.1 mΩ at a gate-source voltage of 10V and a drain current of 399A.



This MOSFET is optimized for low-voltage motor drives and battery-powered applications. It features a high continuous drain current capability of 399A at 25°C case temperature and 282A at 100°C case temperature. The device is 100% avalanche tested and rated for a maximum operating temperature of 175°C.



The IST011N06NM5 is supplied in the sTOLL package, which enables automated optical solder inspection. It is fully qualified according to JEDEC for Industrial Applications and is RoHS compliant.

IST011N06NM5 Quick Information

Product Type: MOSFET
Series: OptiMOSTM5
Canonical Name: Infineon IST011N06NM5 N-channel MOSFET
Subcategory: N-Channel

IST011N06NM5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IST011N06NM5 Features

  • 60V drain-source breakdown voltage.
  • Low 1.1mOhm on-resistance.
  • High 399A continuous drain current.
  • Optimized for motor drives.
  • sTOLL package for automated inspection.

IST011N06NM5 Applications

  • Low voltage motor control.
  • Battery powered systems.
  • Power switching applications.
  • Industrial automation.

IST011N06NM5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the IST011N06NM5?

The maximum drain-source voltage (VDS) is 60V.

What is the continuous drain current rating at 25°C?

The continuous drain current (ID) is 399A at TC=25°C with VGS=10V.

What is the on-resistance of this MOSFET?

The maximum on-resistance (RDS(on)) is 1.1mΩ at VGS=10V and ID=399A.

What package is the IST011N06NM5 available in?

It is available in a surface-mount sTOLL package.

What is the maximum operating junction temperature?

The maximum operating junction temperature (Tj) is 175°C.

What is the maximum power dissipation at 25°C case temperature?

The maximum power dissipation (Ptot) is 313W at TC=25°C.
