NCV20162DR2G
On Semiconductor
The On Semiconductor NCV20162DR2G is an 8 MHz operational amplifier with rail-to-rail output. It is housed in a surface-mount 8-SOIC package.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,100 pcs
|
17100 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Tape & Reel |

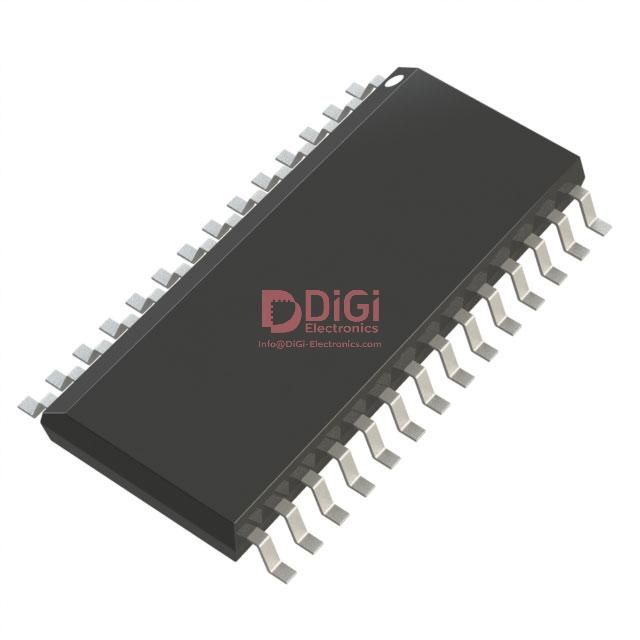

The ADG507AKRZ is a Dual 8:1 Analog Switch manufactured by Analog Devices Inc. This component is designed for switching applications requiring high performance and reliability.
Key electrical specifications include an on-state resistance of 300 Ohms (maximum) and a channel-to-channel matching of 15 Ohms. It supports single supply voltages from 10.8V to 16.5V and dual supply voltages from ±10.8V to ±16.5V. The switch time (Ton, Toff) is a maximum of 300ns.
This device is housed in a 28-SOIC package and is suitable for surface mount applications. It is supplied on tape and reel, indicating suitability for automated assembly processes. The component is classified under Analog Switches, Multiplexers, Demultiplexers.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH Unaffected status. These attributes are based on existing database information and are considered low confidence.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The single supply range is 10.8V to 16.5V, and the dual supply range is ±10.8V to ±16.5V.
The ADG507AKRZ is available in a 28-SOIC surface mount package.
The maximum on-state resistance is 300 Ohms.
Typical channel-to-channel matching is 15 Ohms.
Maximum switching time is 300 ns for both turn-on and turn-off.
The device contains two independent 8:1 circuits.
It is a dual 8:1 multiplexer/demultiplexer.
