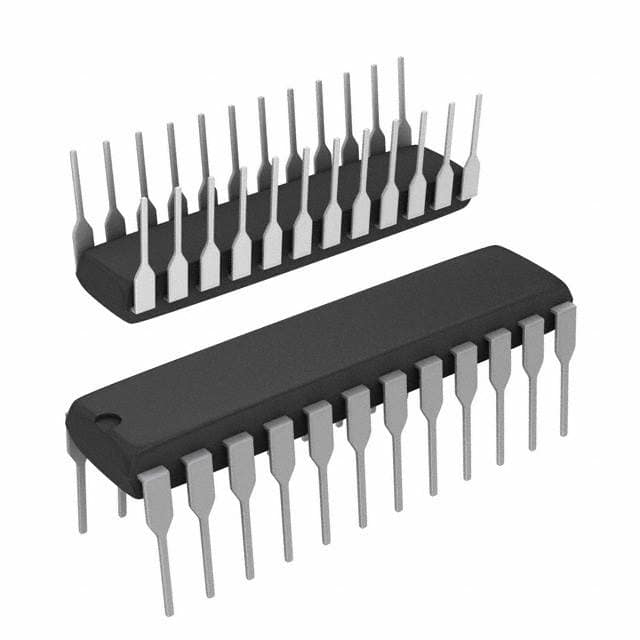

The A6276EA from Allegro MicroSystems is a BiCMOS device designed for LED-display applications. It integrates a 16-bit CMOS shift register, data latches, and 16 NPN constant-current sink drivers. This configuration allows for direct interfacing with microprocessor-based systems, supporting serial data input rates up to 20 MHz with a 5V logic supply.
The device offers constant-current outputs capable of up to 90 mA, determined by a user-selected resistor. An ENABLE input allows for inter-digit blanking by disabling all output drivers when high. The A6276EA is available in three package styles: DIP, SOIC, and TSSOP. The DIP package, in particular, is suitable for continuous operation at maximum rated current over the operating temperature range of -40°C to 85°C.
Key features include undervoltage lockout, low-power CMOS logic, and the ability to cascade connections via a CMOS serial data output. It serves as a functional replacement for the TB62706BN/BF.
This specific variant, A6276EA, is supplied in a 24-pin DIP package and is suitable for through-hole mounting. It operates within an ambient temperature range of -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 4.5V to 5.5V, with an absolute maximum rating of 7V.
The A6276EA is available in a 24-pin DIP (0.300 inch, 7.62mm) through-hole package.
The operating ambient temperature range is -40°C to 85°C for the E version, or -20°C to 85°C for the S version.
The maximum constant-current output is 90 mA per channel.
The typical data input rate is 20 MHz at 5V logic supply.
The output voltage can be up to 17V.
The storage temperature range is -55°C to 150°C.
