| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

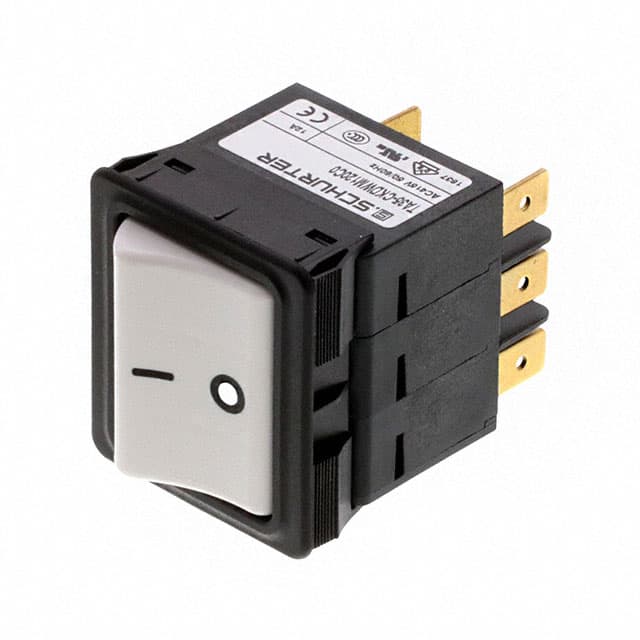

The Schurter Inc. 4435.0286 is a thermal circuit breaker designed for reliable circuit protection. This 3-pole unit features a rocker actuation type and a current rating of 12A, suitable for applications requiring up to 240VAC.
With a panel mount design, this breaker offers a degree of protection of IP40 on the front side. It has a mechanical lifetime of 50,000 switching cycles and meets IEC standards for overload conditions. The operating temperature range is from -30°C to 60°C.
Key technical specifications include a conditional short circuit capacity of 2 kA @ 415 VAC, dielectric strength greater than 2.5 kV, and impulse dielectric strength greater than 4 kV. Insulation resistance is rated at over 100 MΩ at 500 VDC.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its robust construction and thermal tripping mechanism ensure dependable operation in demanding environments.
The circuit breaker is rated for 415 VAC (line-to-line) and 240 VAC (line-to-neutral).
-30°C to 60°C.
12A.
3 poles.
Panel mount.
Rocker.
2 kA at 415 VAC.
