| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

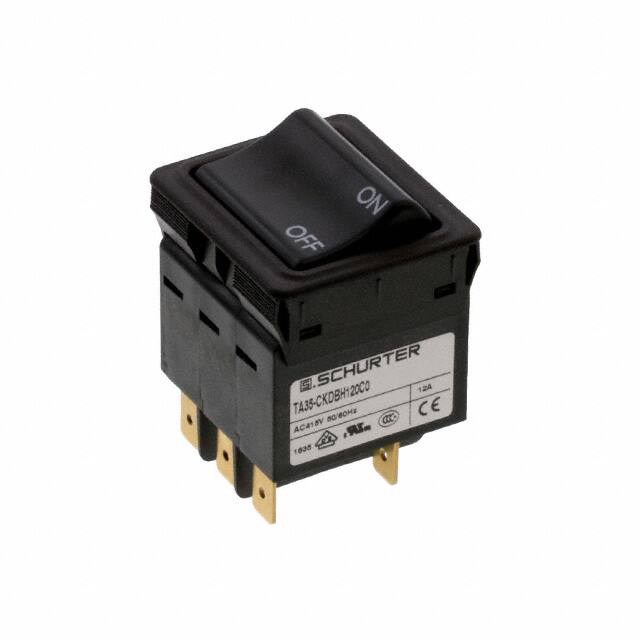

The Schurter Inc. 4435.0236 is a thermal circuit breaker designed for reliable circuit protection. This 3-pole unit offers a current rating range from 0.05A to 12A and a voltage rating of 240VAC.
Key technical specifications include a thermal tripping type, rocker actuation, and a panel mount configuration. It boasts a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30°C to 60°C. The circuit breaker also provides an ingress protection rating of IP40 on the front side.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its robust design ensures dependable performance in demanding environments.
Compliance data indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted with low confidence due to lack of verification.
The rated voltage AC is 415Y / 240 VAC.
The rated current range AC is 0.05 - 12 A.
The allowable operation temperature is -30 °C to 60 °C.
The RoHS status is RoHS3 Compliant.
