| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

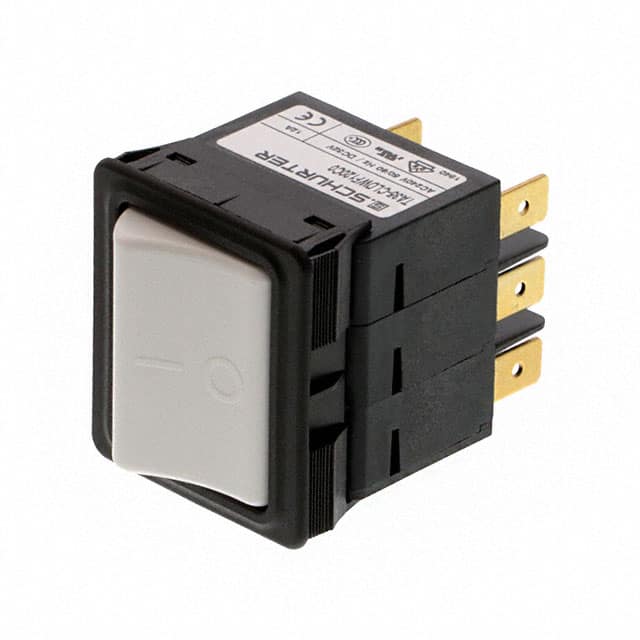

The Schurter Inc. 4435.0122 is a thermal circuit breaker designed for reliable circuit protection. This 3-pole device offers a current rating range of 0.05 to 12A and a voltage rating of 415Y / 240 VAC.
Key technical specifications include a conditional short circuit capacity of 2 kA @ 415 VAC, IP40 degree of protection on the front side, and dielectric strength exceeding 2.5 kV. The breaker has a mechanical lifetime of 50,000 switching cycles and meets IEC overload trip standards.
Designed for panel mounting, this circuit breaker features rocker actuation for ease of use. Its operating temperature range is -30°C to 60°C, making it suitable for various industrial applications. The device also includes approvals from VDE, UL, and CCC.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The current rating range is 0.05 to 12A.
The rated voltage is 415Y / 240 VAC.
It has 3 poles.
It uses rocker actuation.
The allowable operating temperature is -30°C to 60°C.
The degree of protection on the front side is IP40.
The mechanical lifetime is 50,000 switching cycles.
