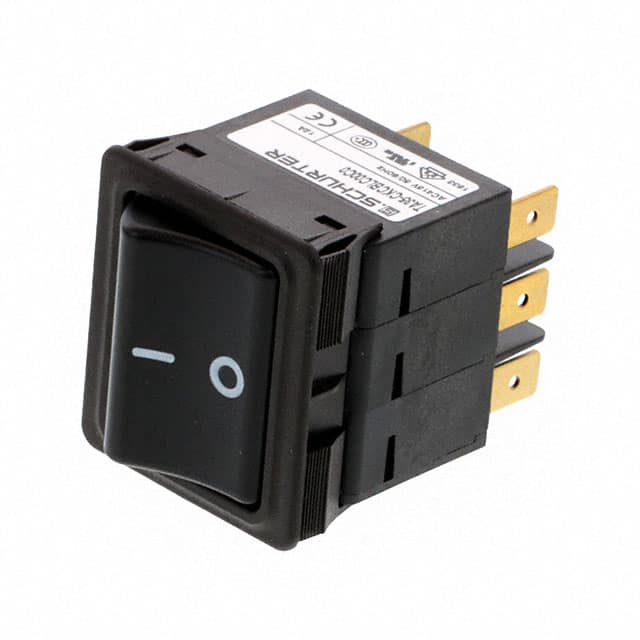

The Schurter Inc. 4435.0018 is a 3-pole thermal circuit breaker designed for equipment protection. It features rocker actuation and a snap-in mounting type, suitable for panel mounting.
Key electrical specifications include a rated voltage of 240 VAC (with a higher AC rating of 415 VAC also noted) and a rated current range from 0.05 to 12 A. The breaker offers a conditional short circuit capacity of 2 kA at 415 VAC. It has a mechanical lifetime of 50,000 switching cycles.
Environmental and mechanical details include a degree of protection of IP40 on the front side, an allowable operating temperature range of -30 °C to 60 °C, and resistance to vibration and shock.
This circuit breaker is suitable for various applications such as power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The Schurter 4435.0018 is rated for 240VAC and 415VAC operation.
The operating temperature range is -30°C to 60°C.
The current rating is adjustable from 0.05A to 12A.
The conditional short circuit capacity is 2kA at 415VAC.
It has a mechanical lifetime of at least 50,000 switching cycles.
It is designed for panel mount installation.
