| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

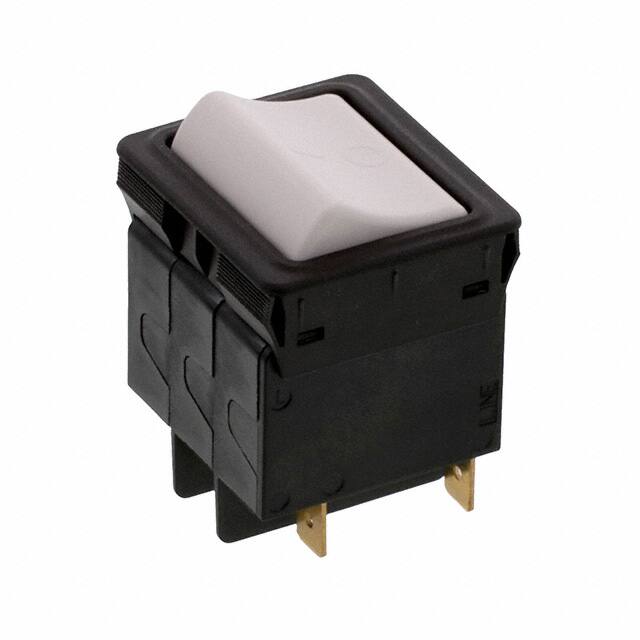

The Schurter Inc. 4435.0025 is a 3-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. It offers a rated current range of 0.05 to 12A AC and a rated voltage of 415Y VAC / 240 VAC.
This circuit breaker has a conditional short circuit capacity of 2 kA at 415 VAC and an ingress protection rating of IP40 on the front side. It is designed for a mechanical lifetime of 50,000 switching cycles and operates within a temperature range of -30°C to 60°C.
Applications for this thermal circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It provides positively trip-free release and is available in various rocker colors for high configurability.
The rated voltage is 415 VAC between poles, and also listed as 240 VAC per pole.
The allowable operating temperature range is -30°C to 60°C.
Thermal tripping mechanism.
50,000 switching cycles mechanical and also under AC and DC load conditions.
IP40 according to IEC 60529.
2 kA at 415 VAC per IEC 60934.
