| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

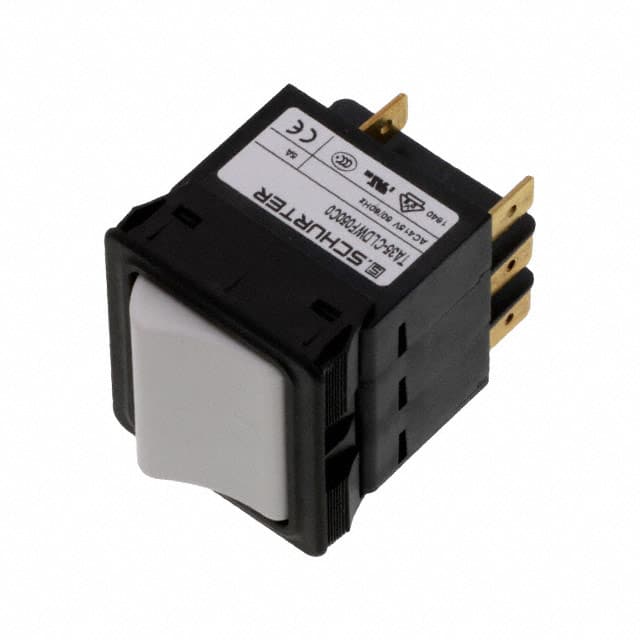

This Schurter Inc. 4435.0148 is a thermal circuit breaker designed for reliable circuit protection. It features a 3-pole configuration, a 5A current rating, and a 240VAC voltage rating, making it suitable for various industrial and commercial applications.
The breaker utilizes a rocker actuation type for easy operation and a panel mount design for straightforward integration into equipment. Its thermal tripping mechanism ensures protection against overloads.
Key specifications include a conditional short circuit capacity of 2 kA @ 415 VAC, an operating temperature range of -30°C to 60°C, and a mechanical lifetime of 50,000 switching cycles. The front side offers IP40 protection.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, equipment for construction, cleaning equipment, and commercial kitchen appliances.
It is rated for 415 VAC (line-to-line) and 240 VAC (line-to-neutral) operation.
The fixed current rating is 5A. The product family supports a current range of 0.05 to 12A.
-30°C to 60°C.
It is panel mounted with a rocker actuator.
IP40 on the front side.
Mechanical lifetime 50,000 cycles; electrical lifetime 50,000 cycles at rated current (AC and DC).
Dielectric strength >2.5 kV at 50 Hz; impulse withstand >4 kV (1.2/50 μs).
