| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Terminal | |
| Type | |
| Voltage Rating | |
| Weight |

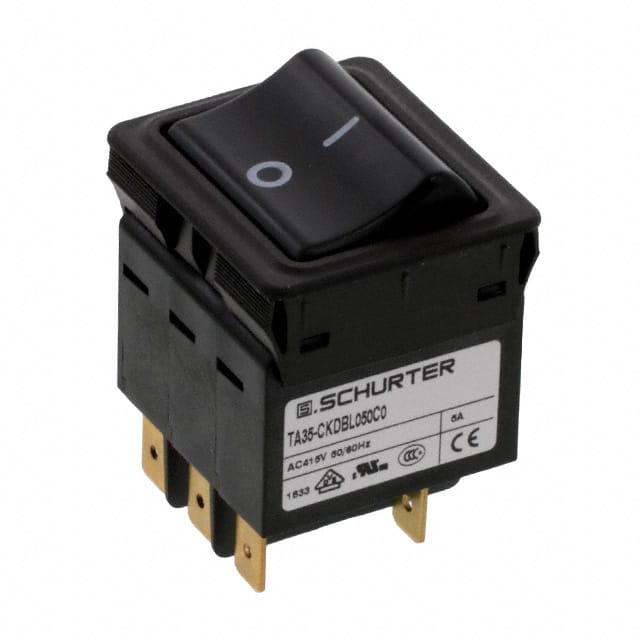

The Schurter Inc. 4435.0016 is a thermal circuit breaker designed for reliable circuit protection. This 3-pole device offers a rated current range of 0.05A to 12A, with this specific model rated at 5A and 240VAC.
Key technical specifications include a conditional short circuit capacity of 2 kA at 415 VAC, dielectric strength greater than 2.5 kV, and insulation resistance exceeding 100 MΩ at 500 VDC. The operating temperature range is -30°C to 60°C, with a storage temperature range of -40°C to 60°C.
This circuit breaker features a rocker actuation type and a panel mount design. It has a mechanical lifetime of 50,000 switching cycles. The degree of protection on the front side is IP40.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated voltage is 240VAC (also 415VAC for certain configurations).
The operating temperature range is -30°C to 60°C.
Dielectric strength is >2.5kV at 50Hz and >4kV impulse (1.2/50μs).
Mechanical life is 50,000 switching cycles.
The front side is rated IP40 according to IEC 60529.
