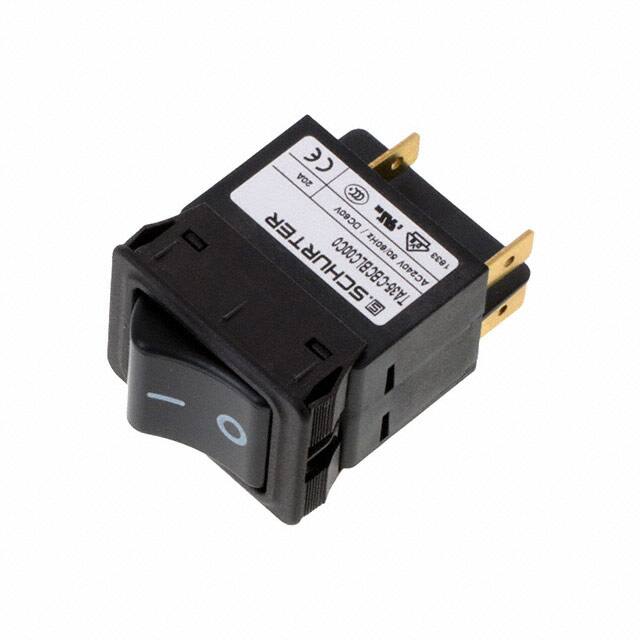

The Schurter Inc. 4435.0014 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It features a rocker actuation type and a panel mount for easy integration into equipment.
This circuit breaker offers a rated voltage of 240 VAC and 60 VDC, with a rated current range of 0.05 to 20 A. It has a conditional short circuit capacity of 2 kA at 240 VAC and meets IP40 degree of protection on the front side. The device is built for durability with a mechanical lifetime of 50,000 switching cycles.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its thermal tripping type ensures protection against overloads, while the option for thermal-magnetic tripping provides short-circuit protection.
Key specifications include a wide operating temperature range from -30 °C to 60 °C and robust resistance to vibration and shock. The Schurter Inc. 4435.0014 is designed for industrial environments, offering a balance of performance and reliability.
The 4435.0014 is rated for 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
The operating temperature range is -30°C to 60°C.
It uses panel mount installation.
The adjustable current range is 0.05A to 20A AC.
It supports both thermal and thermal-magnetic tripping.
The front side is rated IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
