| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

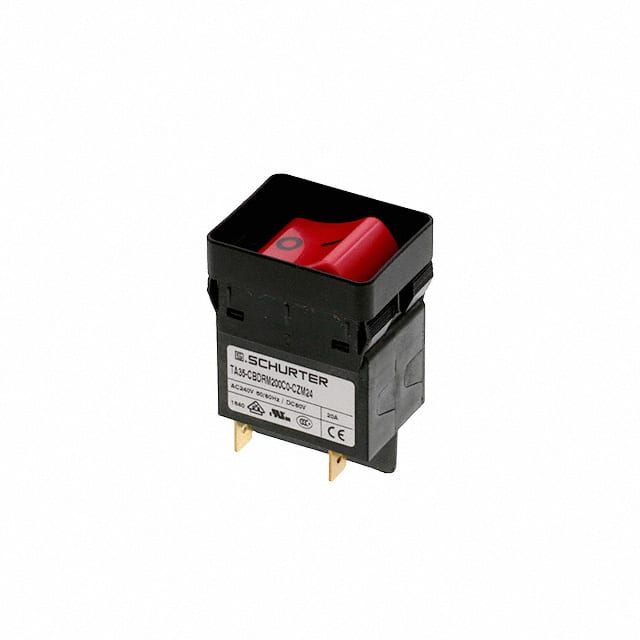

The Schurter Inc. 3-100-115 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated voltage of 240 VAC and 60 VDC, with a current range up to 20A AC. The breaker features a thermal tripping type and a rocker actuation for ease of use.
This circuit breaker is suitable for panel mounting and has a mechanical lifetime of 50,000 switching cycles. It operates within a temperature range of -30 °C to 60 °C. The device meets IP40 degree of protection on the front side.
Key applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and equipment for construction. Its robust design and thermal protection make it a versatile component for various industrial and commercial applications.
The circuit breaker is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
The rated current is 20 A AC, with a range of 0.05 to 20 A for AC operation.
The operating temperature range is -30 °C to 60 °C.
The dielectric strength is greater than 2.5 kV at 50 Hz.
The mechanical lifetime is 50,000 switching cycles.
It is a panel mount device with a rocker actuator.
It provides IP40 protection according to IEC 60529.
