| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

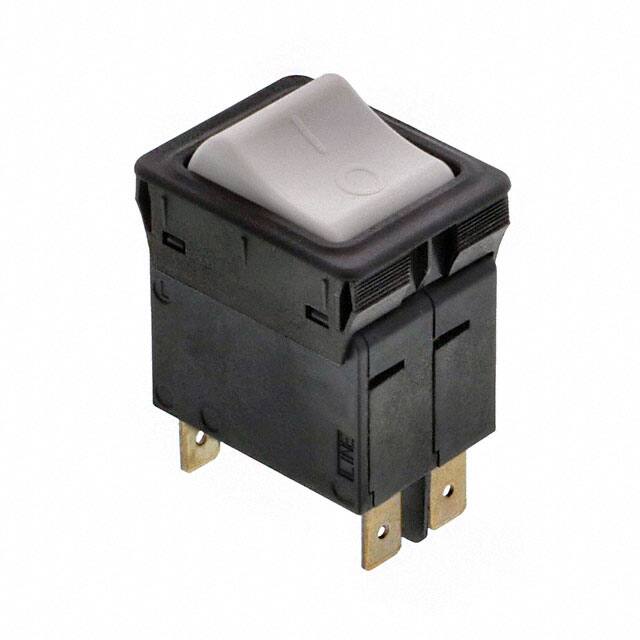

The Schurter Inc. 4435.0284 is a thermal circuit breaker designed for equipment protection. This 2-pole device offers a rated current of 12A and operates at up to 240VAC or 60VDC.
Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC and a mechanical lifetime of 50,000 switching cycles. The operating temperature range is -30 °C to 60 °C.
Featuring a rocker actuation type and panel mount, this circuit breaker is suitable for various industrial applications. Its thermal tripping mechanism provides reliable protection against overloads.
Compliance includes RoHS3, MSL 1, and REACH unaffected status, though these are based on existing database information with low confidence.
The rated current range AC is 0.05 - 20 A, with a specific rating of 12A for this model.
The rated voltage is 240 VAC (IEC) or 277 VAC (UL/CSA) and 60 VDC.
This circuit breaker has 2 poles.
The allowable operation temperature is from -30 °C to 60 °C.
The tripping type is Thermal, and it also supports Thermal-Magnetic tripping.
The mechanical lifetime is rated for 50,000 switching cycles.
