| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

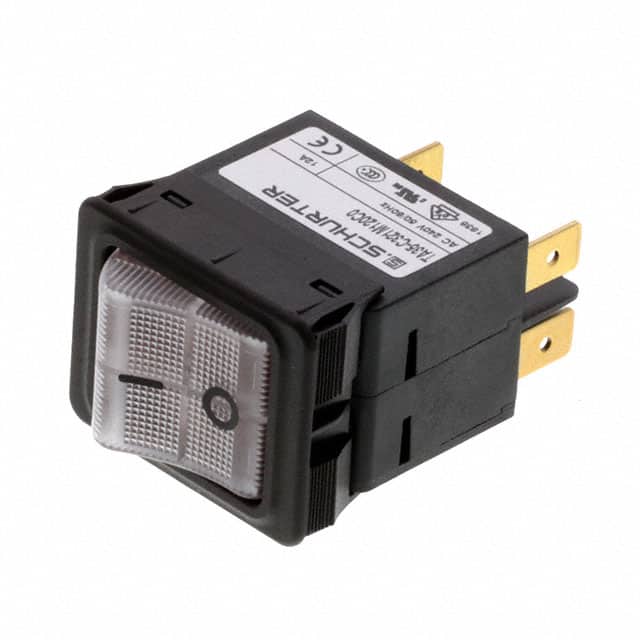

The Schurter Inc. 4435.0368 is a thermal circuit breaker from the TA35 series, designed for reliable circuit protection in various industrial applications. This 2-pole breaker features a rocker actuator for easy operation and a panel mount design for convenient integration into equipment.
With a current rating of 12A and voltage ratings of 240 VAC and 60 VDC, it offers robust protection. The breaker operates on a thermal tripping principle, ensuring safety against overloads. Its mechanical lifetime is rated for 50,000 switching cycles, providing durability for demanding environments.
Key specifications include a degree of protection of IP40, dielectric strength of >2.5 kV, and an insulation resistance of >100 MΩ. The operating temperature range is -30 °C to 60 °C, making it suitable for a wide array of conditions. The compact design and reliable performance make it an ideal choice for power tools, medical equipment, and industrial appliances.
The breaker is rated for 240 VAC (IEC) and 277 VAC (UL/CSA) on AC, and 60 VDC on DC.
It is a panel mount device supplied in bulk packaging.
It operates from -30°C to 60°C.
The continuous current rating is 12 A.
It uses thermal-magnetic tripping.
It is rated for 50,000 mechanical switching cycles.
The actuator type is a rocker.
