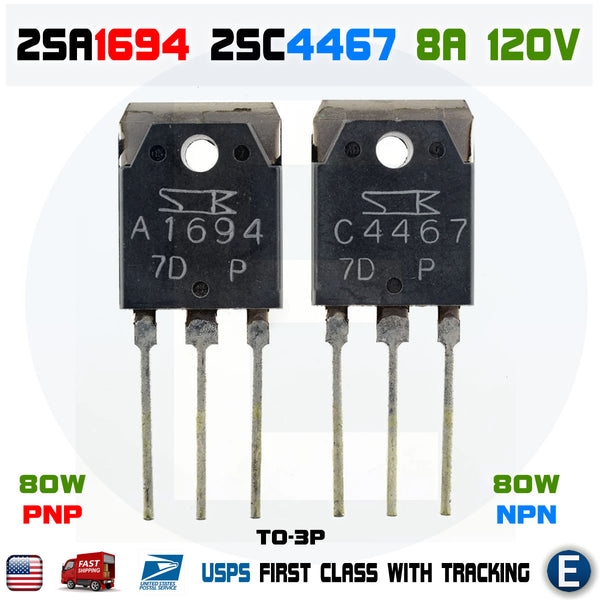

The Sanken 2SA1694/2SC4467 is a complementary pair of NPN and PNP power transistors designed for various electronic applications. Each transistor in the pair is rated for a maximum collector current of 8A and a maximum collector-emitter voltage of 120V. The maximum collector power dissipation is 80W, indicating its capability for handling significant power.
The 2SA1694 (PNP) has a maximum collector-base voltage of 120V and a maximum operating junction temperature of 150°C. Its minimum forward current transfer ratio (hFE) is 50. The 2SC4467 (NPN) features a higher maximum collector-base voltage of 160V, a maximum operating junction temperature of 125°C, and a minimum forward current transfer ratio (hFE) of 10.
Both transistors are constructed with Silicon (Si) material and come in a TO-3P package, suitable for through-hole mounting. The transition frequency for both is 20 MHz, and the collector capacitance for the 2SA1694 is 300 pF.
This power transistor pair is suitable for applications requiring complementary NPN and PNP devices for power amplification or switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector current for both the 2SA1694 and 2SC4467 transistors is 8A.
The maximum collector-emitter voltage for the 2SA1694 is 120V, and for the 2SC4467 it is also 120V.
The maximum collector power dissipation for both the 2SA1694 and 2SC4467 transistors is 80W.
The 2SA1694/2SC4467 transistor pair is supplied in a TO-3P package.
The minimum forward current transfer ratio (hFE) for the 2SA1694 is 50.
The minimum forward current transfer ratio (hFE) for the 2SC4467 is 10.
