| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
135 pcs
|
135 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Power Dissipation | |
| SVHC Present | |
| Tape & Reel |

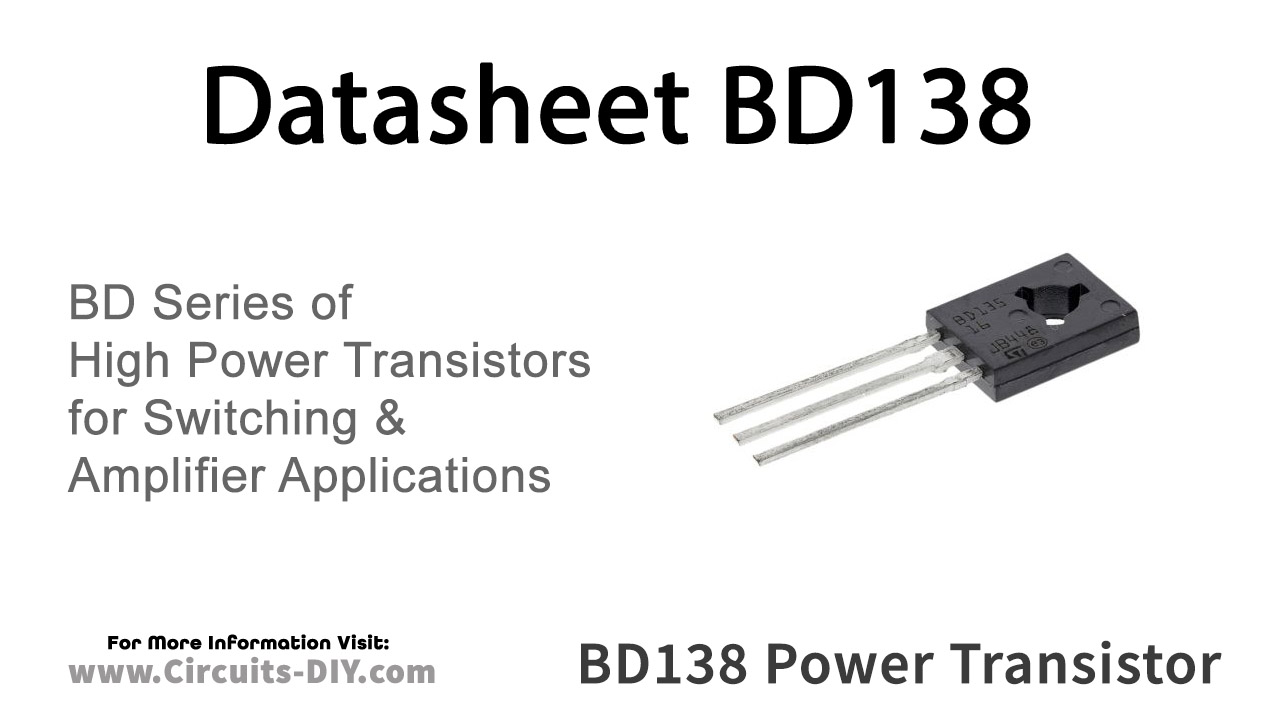

The BD138 is a silicon epitaxial planar PNP transistor manufactured by HXY, housed in a TO-126 plastic package. It is designed for use in audio amplifiers and driver circuits, particularly those employing complementary or quasi-complementary configurations.
Key electrical specifications include a maximum collector current of 1.5A and a maximum collector-emitter voltage of 60V. The transistor also offers a typical hFE of 150 at Ic=150mA and Vce=2V, with a range of 63-160 at Ic=1.5A and Vce=2V. The maximum emitter-base voltage is rated at 5V.
This power transistor is designed to handle significant current and voltage, making it suitable for applications requiring amplification or switching capabilities in audio systems and television circuits. Its TO-126 package is designed for through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60V.
1.5A.
TO-126.
PNP.
The typical hFE is 150 at Ic=150mA, Vce=2V.
1.25W.
