| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
149 pcs
|
149 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

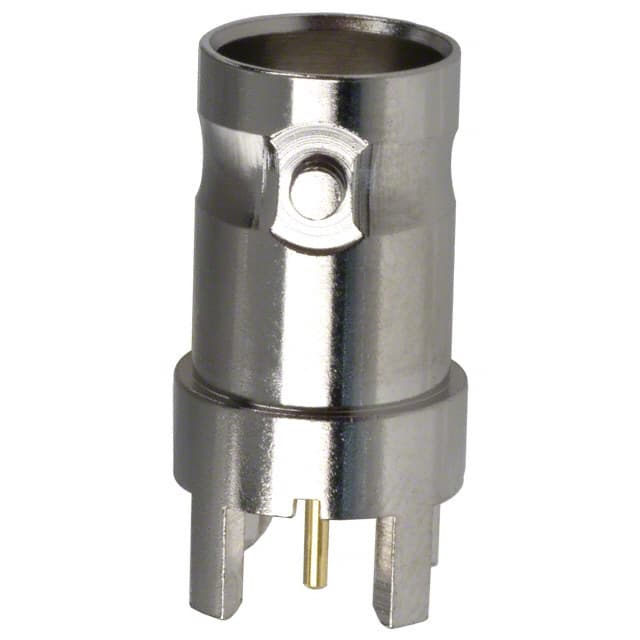

The Amphenol RF 112538 is a BNC jack connector designed for printed circuit board applications. It features a female socket contact and offers a characteristic impedance of 50 Ohm, making it suitable for RF and telecommunication systems. The connector operates up to a maximum frequency of 4 GHz.
Mounting is through hole with solder terminations for both the center contact and shield, ensuring a reliable connection. The bayonet lock fastening type provides secure mating and quick disconnect. The housing is finished in silver, and the center contact is made from phosphor bronze for durability.
This connector is typically used in test equipment, instrumentation, and telecommunications infrastructure where reliable signal integrity is required.
50 Ohm.
4 GHz.
Through hole.
Solder.
BNC.
Bayonet lock.
Silver.
