| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

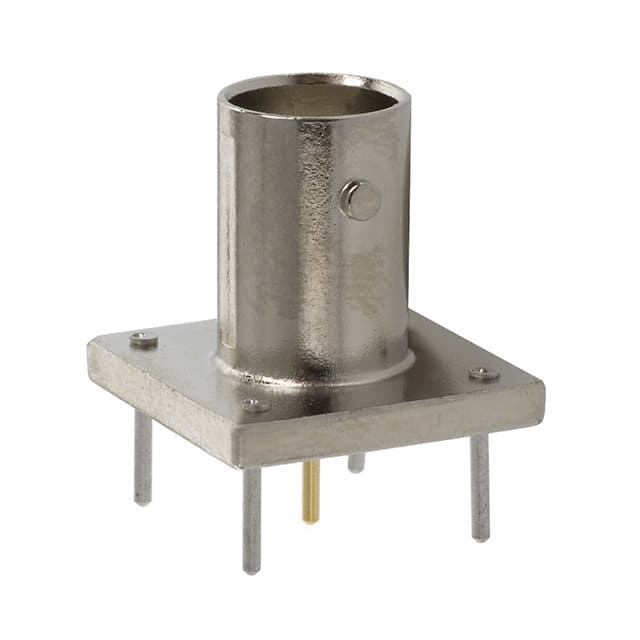

The 5227699-2 is a BNC coaxial connector assembly from TE Connectivity. It features a jack, female socket connector style with a straight body orientation and a bayonet lock fastening type for secure mating. Designed for 50 Ohm impedance, this connector supports frequencies up to 4 GHz, making it suitable for RF applications.
The connector is mounted via through hole and terminated with solder on both the contact and shield. The center contact is made of phosphor bronze, and the housing has a silver color. This part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $8.19 | $8.19 |
| 10+ | $6.96 | $6.96 |
| 30+ | $6.44 | $6.44 |
| 60+ | $6.13 | $6.13 |
| 120+ | $5.84 | $5.84 |
| 270+ | $5.51 | $5.51 |
| 510+ | $5.27 | $5.27 |
| 1,020+ | $5.02 | $5.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
4 GHz.
Through hole.
Solder for both contact and shield.
BNC jack, female socket.
Bayonet lock.
