| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

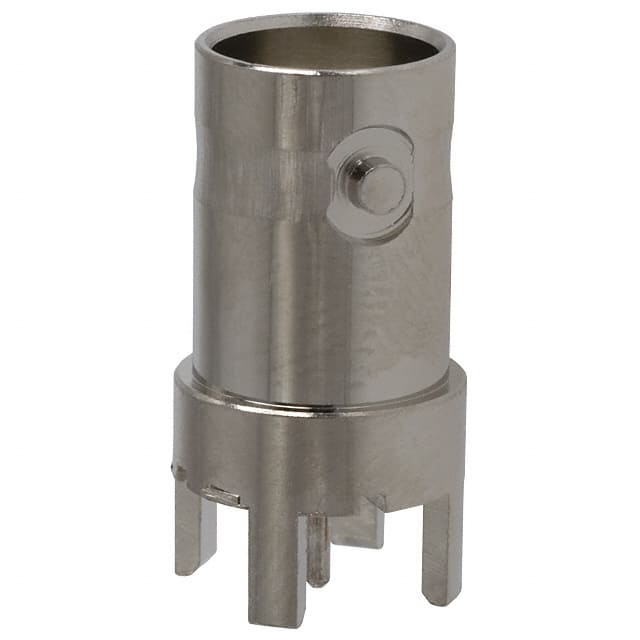

The 5222420-1 from TE Connectivity is a BNC RF coaxial connector assembly. It is configured as a jack with a female socket contact and uses a bayonet lock for secure mating. The connector is designed for 50 Ohm systems and supports frequencies up to 4 GHz.
This through-hole mounted connector has solder terminations for both center contact and shield. The center contact is made of phosphor bronze, and the housing is silver in color. With a single port, it suits standard RF interconnect applications on printed circuit boards.
Reported compliance from the database includes RoHS3, REACH unaffected, and MSL 1 (unlimited). These designations are sourced from existing database records and have not been independently verified.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.17 | $11.17 |
| 10+ | $10.05 | $10.05 |
| 20+ | $9.47 | $9.47 |
| 50+ | $9.23 | $9.23 |
| 100+ | $8.99 | $8.99 |
| 200+ | $8.01 | $8.01 |
| 500+ | $7.53 | $7.53 |
| 1,000+ | $6.88 | $6.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Through hole mounting with solder contact and shield termination.
50 Ohm.
4 GHz.
BNC jack with female socket contact.
Bayonet lock.
Phosphor bronze.
