| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,658 pcs
|
1658 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Current Rating | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Voltage Rating |

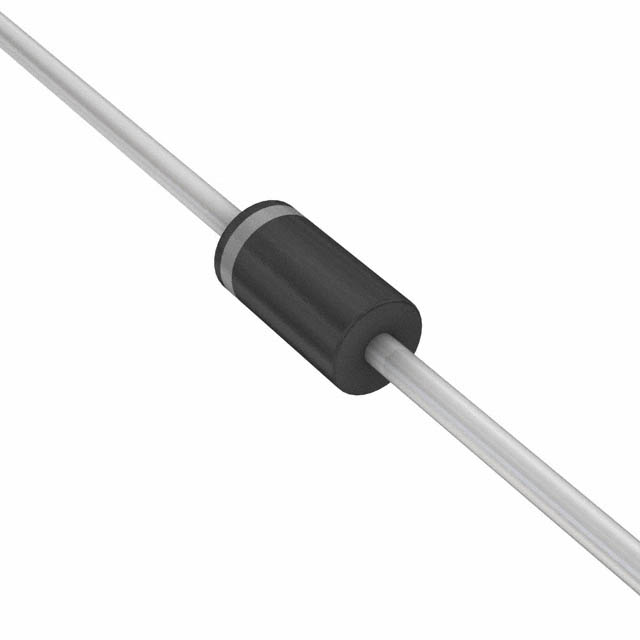

The UF4005-M3/54 is a fast recovery diode manufactured by Vishay General Semiconductor. This component is designed for applications requiring rapid switching and efficient rectification.
Key electrical specifications include a maximum reverse voltage (Vr) of 600V and an average rectified current (Io) of 1A. The forward voltage (Vf) is a maximum of 1.7V at 1A. It offers a fast recovery time (trr) of 75 ns and a reverse leakage current of 10 µA at 600V. The capacitance is rated at 17 pF at 4V and 1MHz.
This diode is housed in a DO-204AL (DO-41) axial package and is designed for through-hole mounting. The operating junction temperature range is from -55°C to 150°C.
Environmental compliance includes RoHS3 compliance, REACH unaffected status, and Moisture Sensitivity Level 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.17 | $1.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage (Vr) for the UF4005-M3/54 diode is 600V.
The UF4005-M3/54 has an average rectified current (Io) rating of 1A.
The maximum forward voltage (Vf) for the UF4005-M3/54 at 1A is 1.7V.
The reverse recovery time (trr) for the UF4005-M3/54 diode is 75 ns.
The UF4005-M3/54 diode is supplied in a DO-204AL (DO-41) axial package.
The UF4005-M3/54 diode is designed for through-hole mounting.
