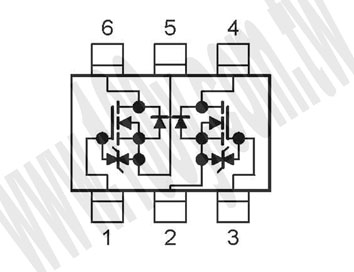

TPC6201 The Toshiba TPC6201 is an N-Channel MOSFET designed for various electronic applications. It offers a 30V drain-source voltage and a 2.5A maximum continuous drain current.
Mfr Part #:

TPC6201

Available from 2 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TPC6201 is an N-Channel MOSFET designed for various electronic applications. It offers a 30V drain-source voltage and a 2.5A maximum continuous drain current.
✓ Total Stock: 229,863 pcs
$ Price Range: $2.81

TPC6201 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
200,889 pcs
On Request
200889 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
28,974 pcs
On Request
28974 pcs On Request 1 On Request On Request 19+PB On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPC6201 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Tape & Reel
View Similar Products (0)

TPC6201 Description

Short technical summary and product information.

The Toshiba TPC6201 is an N-Channel MOSFET with a 30V maximum drain-source voltage and a 2.5A maximum continuous drain current. It features a low typical RDS(on) of 95 mOhm at 10V, indicating efficient power handling.



This MOSFET is housed in a 6-pin VS package and is designed for surface mounting, making it suitable for compact PCB designs. The operating temperature range is -55 to 150 °C, providing robustness in various environmental conditions. Typical fall and rise times are 2 ns and 2.4 ns, respectively, enabling fast switching performance.



With its specified electrical characteristics and surface mount capability, the TPC6201 is a component for power management and switching applications in electronic circuits.

TPC6201 Quick Information

Product Type: N-Channel MOSFET
Canonical Name: Toshiba TPC6201 N-Channel MOSFET
Subcategory: N-Channel

TPC6201 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPC6201 Estimated Pricing

Qty Low High
1+ $2.81 $2.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPC6201 Features

  • 30V maximum drain-source voltage.
  • 2.5A maximum continuous drain current.
  • Low typical RDS(on) of 95 mOhm.
  • Fast typical rise and fall times.
  • Surface mount 6-pin VS package.

TPC6201 Applications

  • Suitable for DC-DC converter switching circuits.
  • Used in low-voltage load switching applications.
  • Ideal for power management in portable devices.
  • Applicable in battery protection circuits.
  • Works in relay driver and solenoid driver circuits.

TPC6201 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-source voltage of the TPC6201?

30 V

What is the continuous drain current rating?

2.5 A

What is the typical on-resistance?

95 mOhm at 10V

What is the operating temperature range?

-55 to 150 °C

What package is the TPC6201 available in?

6VS surface mount

What are the typical rise and fall times?

Rise time 2.4 ns, fall time 2 ns

What is the maximum gate-source voltage?

±20 V
