Mfr Part #:

CSD95485RWJ

The Texas Instruments CSD95485RWJ is a NexFET™ Smart Power Stage designed for high-power, high-density synchronous buck converters. It provides 75A continuous operating current and high efficiency.

✓ Total Stock: 5,540 pcs

$ Price Range: $2.91

CSD95485RWJ Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	5,040 pcs On Request	5040 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	500 pcs On Request	500 pcs	On Request	1	On Request	On Request	18+	On Request	On Request

CSD95485RWJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Texas Instruments
Halogen Free	Halogen free
Mounting Type	Surface Mount
Operating Temperature	-55 to 150 °C
SVHC Present	Not Present
Tape & Reel	Tape & Reel

View Similar Products (0)

CSD95485RWJ Description

Short technical summary and product information.

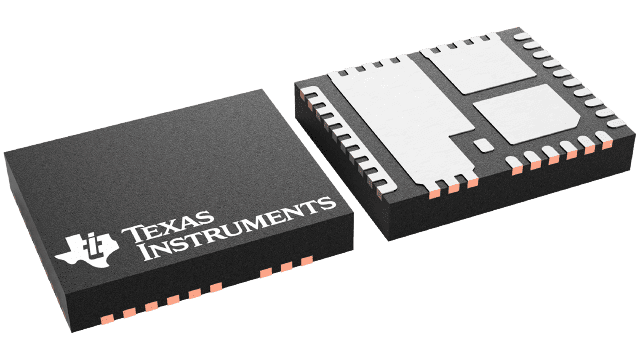

The CSD95485RWJ from Texas Instruments is a highly optimized NexFET™ Smart Power Stage for high-power, high-density synchronous buck converter applications. This integrated solution combines a driver IC and power MOSFETs to deliver high-current, high-efficiency, and high-speed switching capabilities within a compact 5-mm x 6-mm QFN package.

Key electrical features include a 75-A continuous operating current capability and system efficiency exceeding 95% at 30 A. It supports high-frequency operation up to 1.25 MHz, making it suitable for demanding applications. The device integrates accurate temperature-compensated bi-directional current sensing and an analog temperature output, simplifying system design and enhancing accuracy.

Designed for applications such as multiphase synchronous buck converters, POL DC-DC converters, and VR12.x / VR13.x V-core converters for memory and graphic cards, the CSD95485RWJ offers optimized dead time for shoot-through protection and a tri-state PWM input. The ultra-low-inductance package and system-optimized PCB footprint further aid in design time reduction and system completion. It is RoHS compliant with lead-free terminal plating and is halogen-free.

CSD95485RWJ Quick Information

Product Type: Smart Power Stage

Canonical Name: Texas Instruments CSD95485RWJ NexFET™ Smart Power Stage

Subcategory: Synchronous Buck

CSD95485RWJ Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-free terminal plating

CSD95485RWJ Estimated Pricing

Qty	Low	High
1+	$2.91	$2.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

CSD95485RWJ Features

75-A continuous operating current capability.
Over 95% system efficiency at 30 A.
High-frequency operation up to 1.25 MHz.
Integrated current and temperature sensing.
Compact 5-mm x 6-mm QFN package.

CSD95485RWJ Applications

Multiphase synchronous buck converters.
High-frequency, high-current applications.
POL DC-DC converters.
Memory and graphic card power.
Server V-core converters.

CSD95485RWJ FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum drain-source voltage (VDS) of the CSD95485RWJ?

20 V.

What package is the CSD95485RWJ available in?

VQFN-CLIP (RWJ) package, also described as QFN 5-mm × 6-mm.

What is the operating temperature range of the CSD95485RWJ?

-55 °C to 150 °C.

What is the efficiency of the CSD95485RWJ?

Over 95% at 30 A.

What is the switching frequency of the CSD95485RWJ?

Up to 1.25 MHz.

What is the continuous operating current of the CSD95485RWJ?

75 A.

Is there a drop-in replacement for the CSD95485RWJ?

Yes, the CSD95410RRB from Texas Instruments.
