| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
241,067 pcs
|
241067 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,097 pcs
|
6097 pcs | On Request | 1 | On Request | On Request | 8 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Output Power | |
| PSRR | |
| Quiescent Current | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |
The Texas Instruments TPA2031D1YZFR is a high-efficiency, filter-free Class-D audio power amplifier. It delivers up to 2.5W of output power into a 4Ω load, operating from an analog supply voltage range of 2.5V to 5.5V. This amplifier features a typical quiescent current of 2.8mA and a shutdown current of 0.5μA, contributing to maximum battery life and minimal heat generation.
Designed for applications requiring compact solutions, the TPA2031D1YZFR comes in a 1.45mm x 1.45mm wafer chip scale package (WCSP). It requires only three external components, reducing board space and simplifying design. The amplifier boasts an efficiency of 88% at 400mW with an 8Ω speaker, and features improved PSRR of -75dB and a wide supply voltage range, eliminating the need for a voltage regulator.
Key electrical characteristics include a THD + N of 0.18% at 1kHz. The device has a start-up time of 32ms, which helps eliminate CODEC click/pop noise. Its optimized PWM output stage eliminates the need for an LC output filter, and a fully differential design reduces RF rectification and eliminates the bypass capacitor. The improved CMRR further eliminates two input coupling capacitors.
Applications for the TPA2031D1YZFR include wireless or cellular handsets and PDAs. Its pin-to-pin compatibility with the TPA2010D1 makes it suitable for upgrades. The operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TPA2031D1YZFR has a maximum output power of 2.5 W.
The minimum load impedance for the TPA2031D1YZFR is 4 Ω.
The TPA2031D1YZFR operates from an analog supply voltage between 2.5 V and 5.5 V.
The TPA2031D1YZFR has an operating temperature range of -40°C to 85°C.
The THD + N at 1 kHz for the TPA2031D1YZFR is 0.18%.
The TPA2031D1YZFR has an efficiency of 88% at 400mW with an 8Ω speaker.

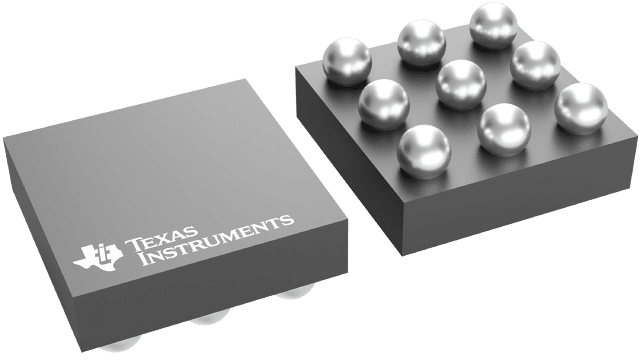

The TPA2031D1YZFR is supplied in a 1.45mm x 1.45mm wafer chip scale package (WCSP) with the code YZF.
