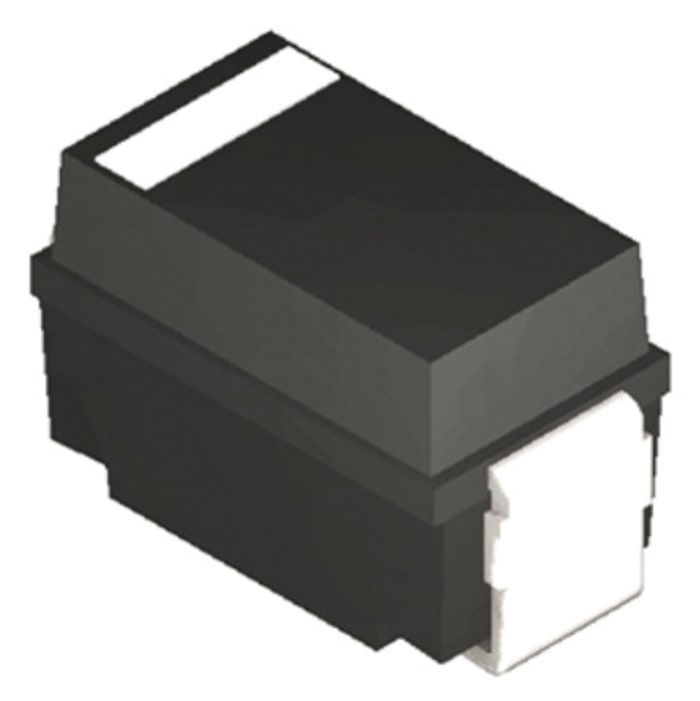

SS26A The HY Electronic Corp SS26A is a Schottky diode with a 60V reverse voltage rating and a 2A maximum continuous forward current. It is housed in a DO-214AC package.
Mfr Part #:

SS26A

Available from 1 distributors
Mfr Name: HY Electronic Corp
HY Electronic Corp
The HY Electronic Corp SS26A is a Schottky diode with a 60V reverse voltage rating and a 2A maximum continuous forward current. It is housed in a DO-214AC package.
✓ Total Stock: 240 pcs
$ Price Range: $0.40

SS26A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
240 pcs
On Request
240 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SS26A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Country of Origin
Diode Configuration
Height
Length
Mounting Type
View Similar Products (0)

SS26A Description

Short technical summary and product information.

The HY Electronic Corp SS26A is a surface mount Schottky barrier rectifier diode from the SS series. It features a 60V peak reverse repetitive voltage (Vrrm) and a 2A maximum continuous forward current (If).



This diode has a low forward voltage drop (Vf) of 700mV maximum and a peak non-repetitive forward surge current (Ifsm) of 50A. The operating temperature range is from -55°C to 150°C.



Packaged in a DO-214AC case, the SS26A is suitable for applications such as free-wheeling, inverters, and polarity protection. Its metal-semiconductor junction with guarding and epitaxial construction contribute to its performance. The diode has a pin count of 2 and is manufactured in China.

SS26A Quick Information

Product Type: Schottky Diode
Series: SS
Canonical Name: HY Electronic Corp SS26A Schottky Diode
Subcategory: Schottky Diode

SS26A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SS26A Estimated Pricing

Qty Low High
1+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

SS26A Features

  • 60V peak reverse repetitive voltage.
  • 2A maximum continuous forward current.
  • 700mV maximum forward voltage.
  • DO-214AC surface mount package.
  • -55°C to 150°C operating temperature range.

SS26A Applications

  • Used in power supply rectification circuits.
  • Ideal for polarity protection applications.
  • Suitable for high-frequency switching.
  • Common in DC-DC converter output stages.
  • Used in freewheeling diode applications.

SS26A FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum continuous forward current of the SS26A?

The maximum continuous forward current is 2A.

What is the peak reverse repetitive voltage of the SS26A?

The peak reverse repetitive voltage is 60V.

What is the forward voltage drop of the SS26A?

The maximum forward voltage is 700mV.

What is the package type of the SS26A?

The package is DO-214AC (SMA).

What is the operating temperature range of the SS26A?

The operating temperature range is -55°C to 150°C.

What is the peak non-repetitive surge current rating of the SS26A?

The peak non-repetitive forward surge current rating is 50A.
