| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Operating Force | |
| Tape & Reel |

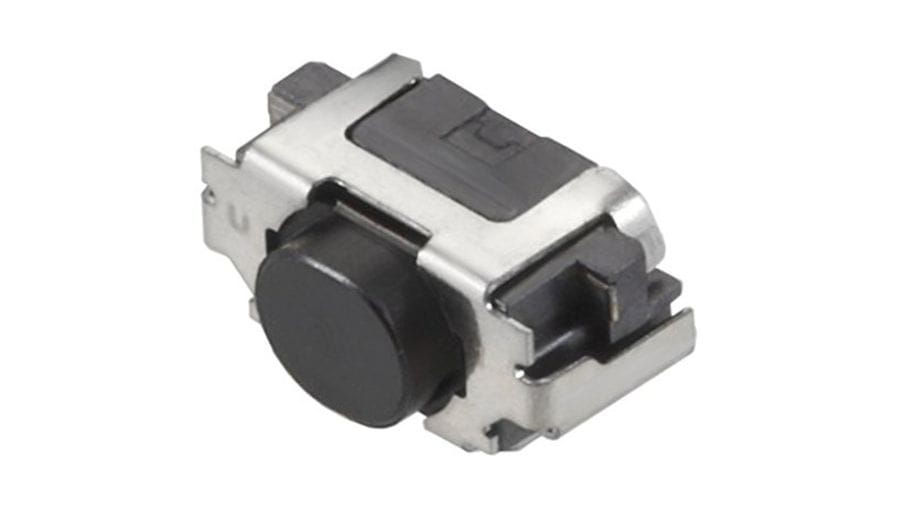

The Alps Alpine SKSLLBE010 is a surface mount TACT Switch belonging to the SKSL series. This component is designed for applications requiring a tactile feedback mechanism.
Key specifications include an operating force of 2.2N, a travel distance of 0.15mm, and a product height of 2.2mm. The switch boasts a substantial operating life of 600,000 cycles and a maximum initial contact resistance of 500mΩ. Its dimensions are 4.5mm in width, 2.6mm in depth, and 2.2mm in height.
This TACT Switch is suitable for various electronic devices, particularly in mobile applications such as smartphones and wearables, as well as in notebooks and peripherals. Its surface mount design facilitates automated assembly processes on printed circuit boards.
The SKSL series offers a half-mount type with a mounting height of 1.6mm from the board surface, contributing to miniaturization in electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating force is 2.2N.
The travel distance is 0.15mm.
The operating life is 600,000 cycles.
The dimensions are 4.5mm x 2.6mm x 2.2mm.
It is a surface mount type.
