| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Depth | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Power Rating | |
| Protection Features | |
| Standards | |
| Type | |
| Voltage | |
| Weight | |
| Width |

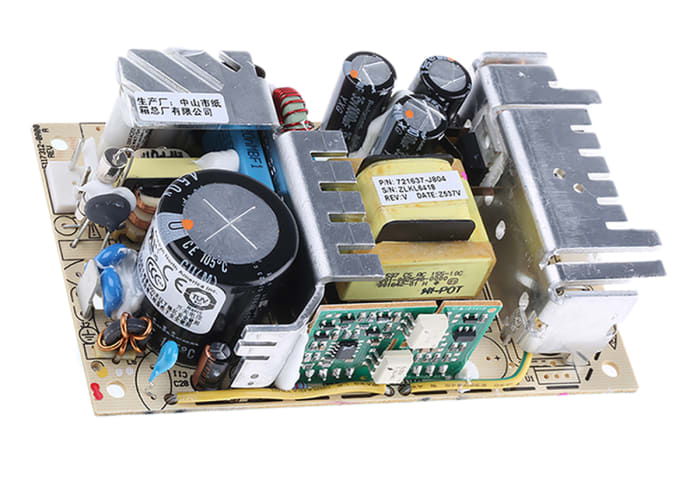

The Artesyn Embedded Power NLP65-9612GJ is a versatile AC/DC converter designed for various applications. It delivers a stable 12V dc output at 5.4A, providing a total power rating of 65W. The unit accepts a wide input voltage range of 85 to 264V ac, making it suitable for global use.
This converter features an open frame package and chassis mounting, allowing for flexible integration into systems. Key electrical specifications include 72% efficiency, over voltage and over current protection, and short circuit protection. It also offers high peak ratings for 60 seconds and a total regulation of ±2% for O/P1 and ±5% for auxiliaries.
The operating temperature range is from 0°C to 70°C, and it has an isolation voltage of 4KVac between input and output, and 1.5KVac between input and chassis. Approvals include CE, VDE, UL recognised, and CSA certified. The MTBF is rated at over 150,000 hours, indicating long-term reliability.
The NLP65-9612GJ provides a 12V dc output at 5.4A.
The power rating is 65W.
The input voltage range is 85 to 264V ac.
It has an open frame package and is designed for chassis mounting.
The operating temperature range is from 0°C to 70°C.
It includes over voltage, over current, and short circuit protection.
The Mean Time Between Failures (MTBF) is rated at over 150,000 hours.
