NLP65-9612G
Artesyn Embedded Power
The Artesyn Embedded Power NLP65-9612G is a 65W AC/DC converter with a 12V output and universal 85-264 VAC input. It features an open frame design suitable for chassis mounting.
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

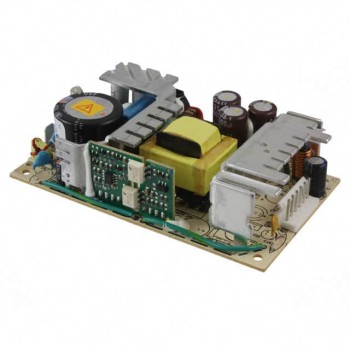

The Artesyn Embedded Power NLP65-7612G is an AC/DC converter designed for ITE (Commercial) applications. This open frame unit operates with a universal input voltage range of 85 to 264 VAC, providing a stable 12V output at up to 5.4A, for a total power of 65W (75W with forced air).
Key electrical specifications include an efficiency of 72% and an isolation voltage of 3 kV. The converter is designed for chassis mounting and operates within a temperature range of 0°C to 70°C. Its features include DC input capability and universal input.
This model is RoHS3 Compliant and has an MSL rating of 1 Unlimited. The dimensions are 127.0mm x 76.2mm x 32.0mm.
The output voltage is 12V.
The maximum output current is 5.4A.
The power rating is 65W, or 75W with forced air.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C.
It uses chassis mount.
