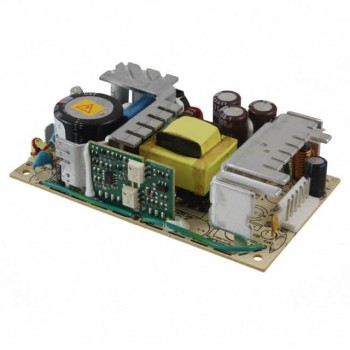

The Artesyn Embedded Power NLP65-9612G is an AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a maximum current of 5.4A, delivering 65W of power (75W with forced air).
This open frame converter operates with a wide input voltage range of 85 to 264 VAC and features universal input capability. It offers a 3 kV isolation voltage and an efficiency of 72%. The operating temperature range is from 0°C to 70°C.
Designed for easy integration, the NLP65-9612G has a chassis mount type and dimensions of 127.0mm x 76.2mm x 32.0mm. It is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
This model is part of the NLP65 series, known for its reliable power conversion in commercial environments.
The input voltage range is 85 to 264 VAC.
It provides a single 12V output with a maximum current of 5.4A.
The power rating is 65W, with 75W available under forced air cooling.
The operating temperature range is 0°C to 70°C.
The isolation voltage is 3 kV.
The efficiency is 72%.
The dimensions are 127.0mm x 76.2mm x 32.0mm (5.00" x 3.00" x 1.26").
