M-C448 HEAT SINK
Cincon Electronics Co. LTD
The Cincon Electronics Co. LTD M-C448 is a heat sink kit designed for DC/DC converters. It is constructed from aluminum AL6063 with a black anodize finish.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Finish | |
| For Use With | |
| Material |

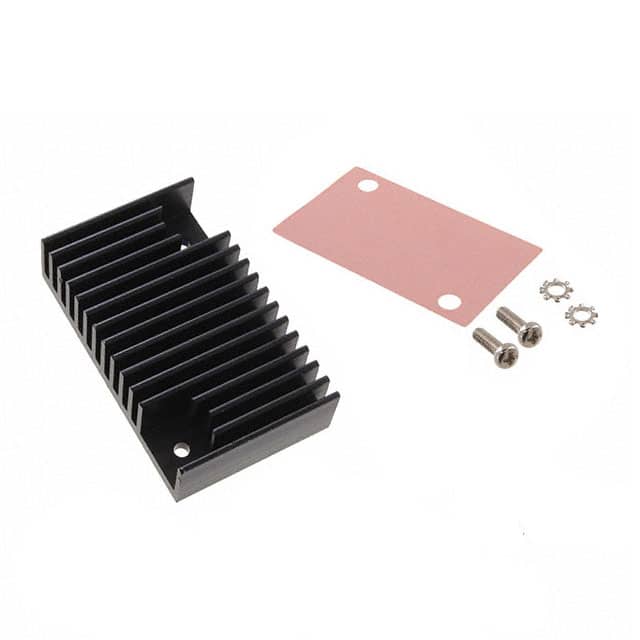

The Cincon M-C655 HEAT SINK KITS are constructed from AL6063 aluminum for efficient heat dissipation, specifically designed for DC/DC converters and other baseplate packages.
These heatsinks are finished with a black anodize plating. They are available in various configurations, including different fin styles (transverse and longitudinal) and heights tailored to specific DC/DC converter package sizes such as LB (2.05”x1.2”), Quarter Brick, Half Brick, and Full Brick.
Mounting hardware and thermal pads are available separately for some models. Thermal resistance varies depending on the airflow conditions and heatsink design, with values provided for natural convection and forced airflow up to 400 LFM.
Under natural convection, the thermal resistance for the LB 2.05”x1.2” Transverse 12.7mm High heatsink is 8.99 °C/W.
At 100 LFM airflow, the thermal resistance for the LB 2.05”x1.2” Transverse 12.7mm High heatsink is 3.29 °C/W.
At 400 LFM airflow, the thermal resistance for the LB 2.05”x1.2” Transverse 12.7mm High heatsink is 2.10 °C/W.
The M-C655 heatsink kit is compatible with LB 2.05”x1.2”, Quarter Brick, Half Brick, and Full Brick DC/DC converter packages.
The M-C655 heatsink kit is constructed of aluminum AL6063.
The M-C655 heatsink kit is finished with black anodize plating.
