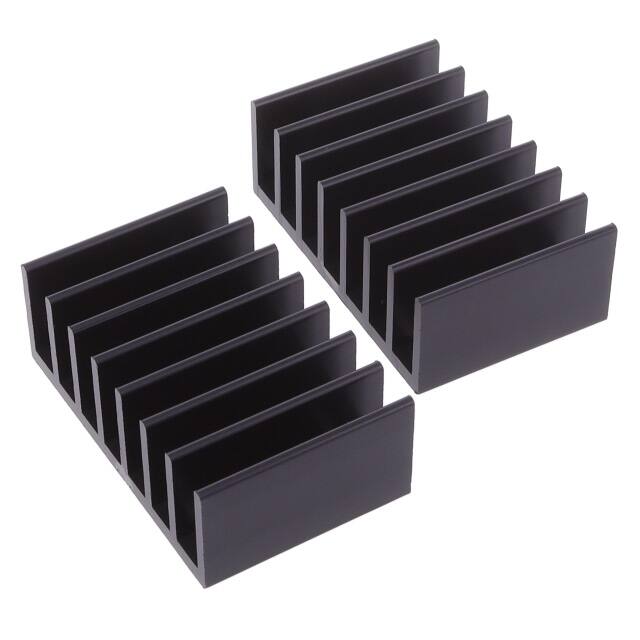

This heat sink kit from Cincon, part number M-C421, is engineered for optimal heat transfer in DC/DC converter applications. Constructed from AL6063 aluminum with a black anodize plating, it provides efficient thermal management.
The kit is designed to accommodate various DC/DC converter package sizes, including Quarter Brick and Half Brick configurations, with specific models offering different heatsink heights and fin styles (transverse or longitudinal). Thermal resistance values vary depending on the specific heatsink model and mounting configuration, with typical values ranging from 2.4 °C/W to 8.99 °C/W under natural convection.
Mounting hardware and thermal pads are available separately, and applying thermal paste is recommended for optimal performance. The heat sink kit is suitable for applications requiring enhanced thermal dissipation to ensure the reliability and longevity of power conversion components.
The thermal resistance varies by heatsink model. For example, the LB 2.05”x1.2” Transverse 12.7mm High heatsink has a typical thermal resistance of 8.99 °C/W under natural convection. Other models offer lower thermal resistance, such as 2.4 °C/W for the Full Brick longitudinal 25.4mm High heatsink.
The M-C421 heat sink kit is constructed of aluminum AL6063 for optimum heat transfer.
The M-C421 heat sink kit is finished with black anodize plating.
The M-C421 heat sink kit is designed for DC/DC Converters and other baseplate packages.
The M-C421 heat sink kit is RoHS3 Compliant.
