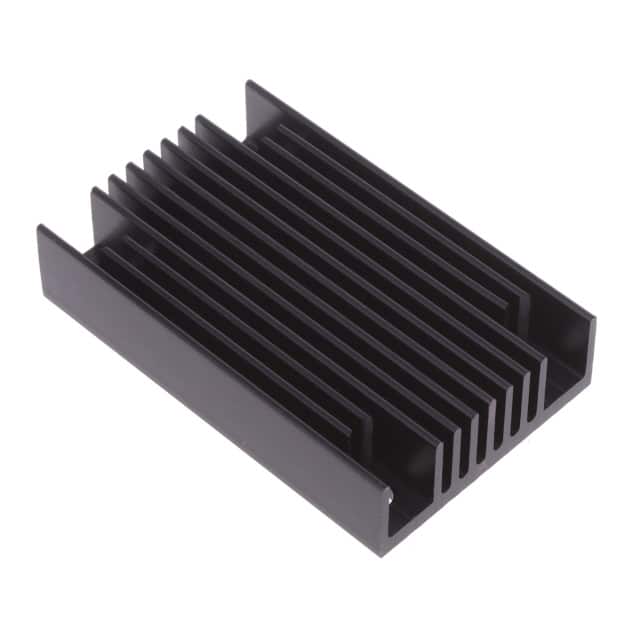

The Cincon Electronics Co. LTD M-C448 Heat Sink Kit is specifically designed for DC/DC converters and other baseplate packages requiring enhanced thermal management. Constructed from aluminum AL6063 for optimal heat transfer, this heatsink features a black anodize plating for durability and corrosion resistance.
This heatsink is designed for Quarter Brick DC/DC converter packages and offers a thermal resistance of 5.61°C/W under natural convection. Additional thermal performance data is available for various airflow conditions, including 4.01°C/W at 100 LFM, 3.39°C/W at 200 LFM, 2.86°C/W at 300 LFM, and 2.49°C/W at 400 LFM. The heatsink height is 12.7mm, and it utilizes a longitudinal plate fin style.
Mounting hardware and thermal pads are available for this heatsink kit, facilitating easy integration into your system. The material is aluminum AL6063, ensuring efficient heat dissipation. This accessory is crucial for maintaining optimal operating temperatures for power conversion components, thereby extending their lifespan and ensuring reliable performance in demanding applications.
It is designed for quarter brick DC/DC converters.
5.61°C/W under natural convection.
2.49°C/W at 400 LFM.
Aluminum AL6063 with black anodize plating.
Mounting hardware and a thermal pad are available separately.
12.7mm.
