M-C448 HEAT SINK
Cincon Electronics Co. LTD
The Cincon Electronics Co. LTD M-C448 is a heat sink kit designed for DC/DC converters. It is constructed from aluminum AL6063 with a black anodize finish.
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Finish | |
| For Use With | |
| Material | |
| SVHC Present |

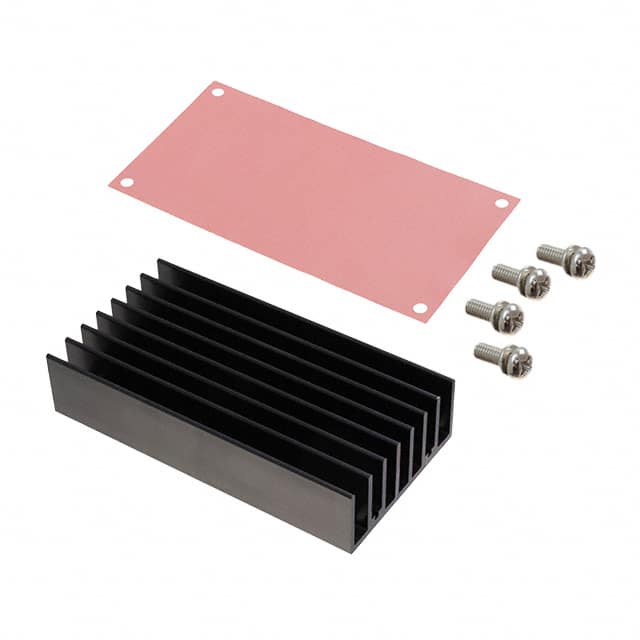

The Cincon M-B012 HEAT SINK KITS is an accessory designed to enhance the thermal performance of DC/DC converters and other baseplate package devices. Constructed from aluminum AL6063, it ensures optimal heat transfer and is finished with durable black anodize plating.
This heat sink kit is available in various configurations to suit different DC/DC converter package sizes, including Quarter Brick (12.7mm and 21mm height) and Half Brick (12.7mm, 21mm, and 25.4mm height) formats. Thermal resistance values vary depending on the specific model and fin style, with options for transverse and longitudinal fins. Mounting hardware and thermal pads are available separately or included with certain part numbers.
Designed for efficient heat dissipation, the M-B012 series is suitable for applications requiring improved thermal management. The material and construction are optimized for heat transfer, helping to maintain optimal operating temperatures for sensitive electronic components.
The thermal resistance varies by specific model and fin style. For example, the LB 2.05”x1.2” Transverse 12.7mm heatsink has a typical thermal resistance of 8.99°C/W at natural convection, while the FBL254 (Full Brick Longitudinal 25.4mm High) has a typical thermal resistance of 2.4°C/W at natural convection.
The heatsink kit is constructed of aluminum AL6063 for optimum heat transfer.
The heatsink kit is finished with black anodize plating.
This heatsink kit is designed specifically for DC/DC Converters and other baseplate packages.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
