| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
81 pcs
|
81 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Tape & Reel |
The LTC3417EDHC#TRPBF from Analog Devices Inc. is a dual synchronous step-down switching regulator designed for efficient power conversion. It accepts an input voltage range of 2.25V to 5.5V and provides an adjustable output voltage from 0.8V to 5V.
This regulator supports output currents of up to 800mA and 1.4A for its two channels. It operates with a switching frequency that can range from 600kHz to 4MHz, with a nominal frequency of 1.5MHz, allowing for flexible design choices regarding component size and efficiency.

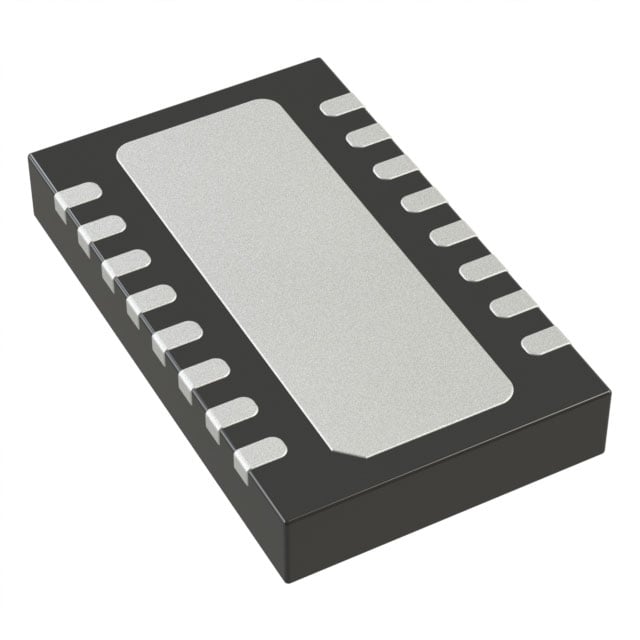

The device is suitable for surface mount applications, housed in a 16-WFDFN Exposed Pad package. It operates within an ambient temperature range of -40°C to 85°C.
Environmental compliance includes RoHS3 compliance, REACH unaffected status, and Moisture Sensitivity Level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.25V to 5.5V.
The output voltage is adjustable from 0.8V to 5V.
The output currents are 800mA and 1.4A.
The operating temperature range is -40°C to 85°C.
This part is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
