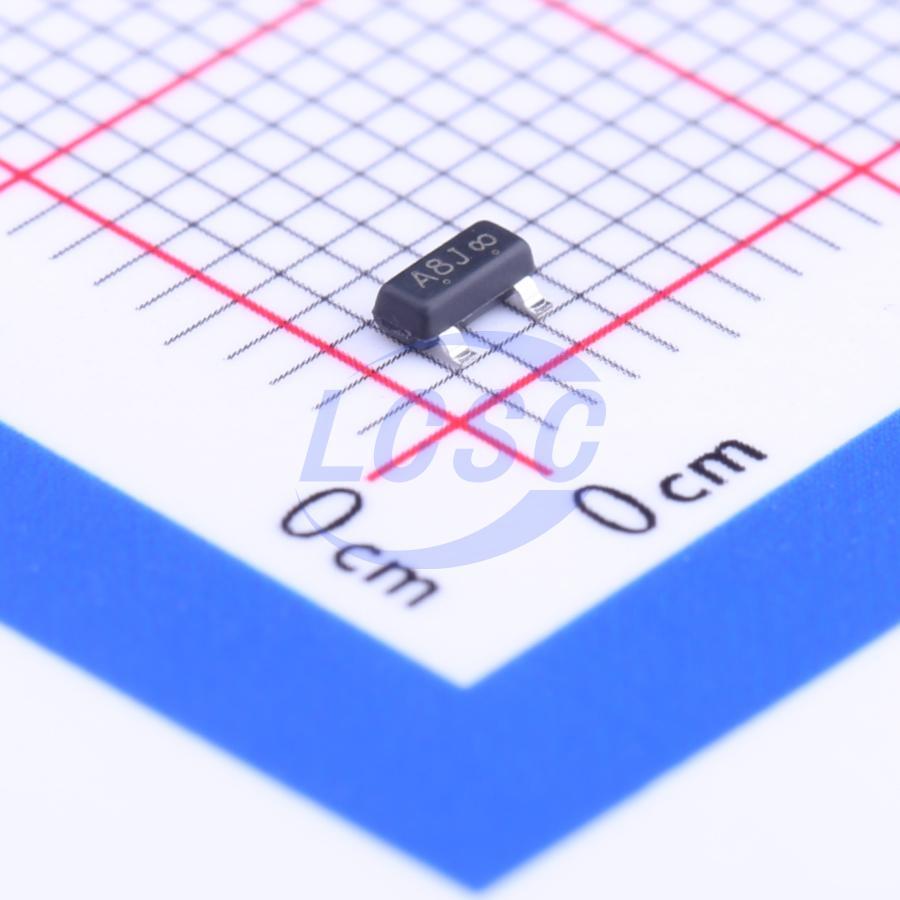

The LMUN2232LT1G is an NPN silicon surface mount transistor with a monolithic bias resistor network, manufactured by LRC Leshan Radio Co Ltd. This component simplifies circuit design and reduces board space and component count.
Key electrical specifications include a Collector-Emitter Voltage (Vceo) of 50V, a continuous Collector Current (Ic) of 100mA, and a Collector-Emitter Breakdown Voltage (Vbr(ceo)) of 50V. It features a minimum DC Current Gain (Hfe) of 600 at 5.0 mA and 10V Vce. The integrated input resistor (R1) is 4.7kΩ with a typical resistor ratio (R1/R2) of 1.
This transistor operates within a junction and storage temperature range of -55°C to +150°C. It is supplied in a SOT-23 package suitable for surface mounting. The device is rated for RoHS3 compliance and is Halogen Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 V.
100 mA.
600 at IC=5 mA, VCE=10 V.
SOT-23 surface mount.
-55 to +150°C.
4.7 kΩ typical.
0.25 V maximum at IC=10 mA, IB=1 mA.
