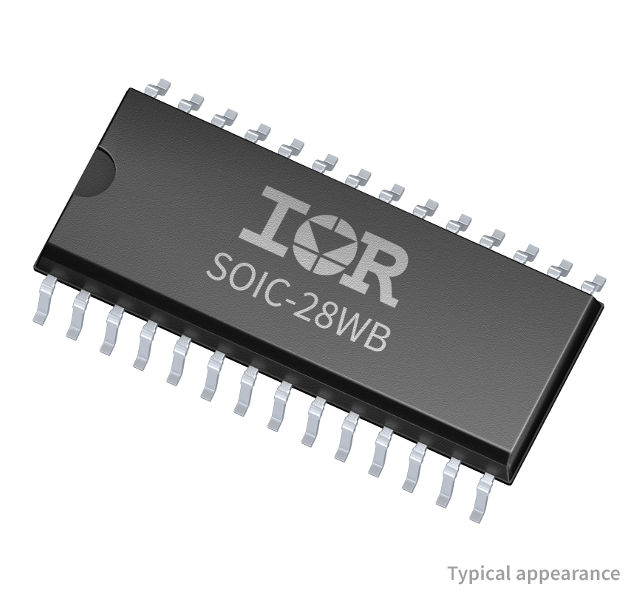

The Infineon IR2136STRPBF is a robust 600V three-phase gate driver IC. It integrates three independent high and low side referenced output channels, making it suitable for 3-phase applications. Utilizing proprietary HVIC technology, it ensures reliable operation.
Key electrical features include compatibility with 3.3V logic, matched propagation delays for high-frequency applications, and a current trip function for over-current shutdown. The device also provides an enable function to terminate all six outputs simultaneously and an open-drain FAULT signal for overcurrent or undervoltage events. The floating channels are designed for bootstrap operation and are tolerant to negative transient voltage.
This gate driver IC is available in a 28-Lead SOIC surface mount package. Its design prioritizes driver cross-conduction prevention and offers lower di/dt gate drive for improved noise immunity. The overcurrent fault conditions can be cleared automatically after an externally programmed delay.
The IR2136STRPBF is designed for applications requiring efficient and reliable control of power switching devices in three-phase systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.56 | $3.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Up to 600V.
28-Lead SOIC.
3.3V logic compatible.
Ton 400ns, Toff 380ns.
UVCC/BS+ 8.9V, UVCC/BS- 8.2V.
VIH 2.7V, VIL 1.7V.
Surface Mount.
