Mfr Part #:

IPG20N04S4L-08A

Mfr Name: Infineon

The Infineon IPG20N04S4L-08A is a dual N-channel OptiMOS™-T2 Power-Transistor. It offers a 40V drain-source breakdown voltage and a maximum continuous drain current of 20A.

✓ Total Stock: 37,216 pcs

$ Price Range: $2.40

IPG20N04S4L-08A Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	30,000 pcs On Request	30000 pcs	On Request	1	On Request	On Request	18+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	6,216 pcs On Request	6216 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	1,000 pcs On Request	1000 pcs	On Request	1	On Request	On Request	18+	On Request	On Request

IPG20N04S4L-08A Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Infineon
Power Dissipation	54 W
Reverse Recovery Time	34 ns

View Similar Products (0)

IPG20N04S4L-08A Description

Short technical summary and product information.

The Infineon IPG20N04S4L-08A is a dual N-channel logic level enhancement mode Power-Transistor from the OptiMOS™-T2 family. It features a drain-source breakdown voltage of 40V and a continuous drain current of up to 20A at 25°C case temperature.

This MOSFET exhibits a low drain-source on-state resistance, with a maximum of 8.2 mΩ at VGS=10V and ID=17A. It operates over a wide temperature range from -55°C to +175°C. The device is AEC Q101 qualified and suitable for automatic optical inspection.

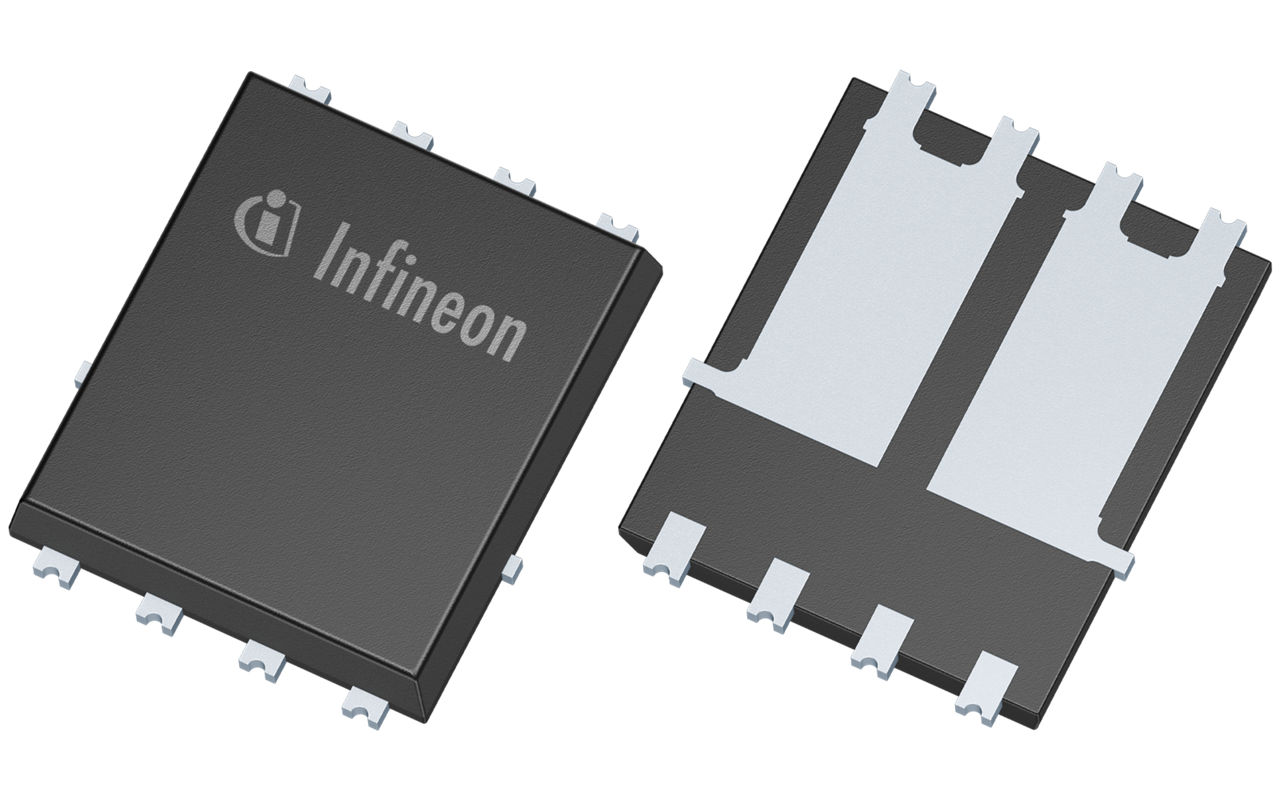

Packaged in a PG-TDSON-8, the IPG20N04S4L-08A is designed for applications requiring efficient power switching. Its features include high performance and reliability, making it suitable for various electronic designs.

IPG20N04S4L-08A Quick Information

Product Type: Power-Transistor

Canonical Name: IPG20N04S4L-08A OptiMOS™-T2 Power-Transistor

Subcategory: N-Channel

IPG20N04S4L-08A Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IPG20N04S4L-08A Estimated Pricing

Qty	Low	High
1+	$2.40	$2.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPG20N04S4L-08A Features

Dual N-channel logic level enhancement mode.
AEC Q101 qualified for automotive use.
Low drain-source on-state resistance.
Wide operating temperature range.
Suitable for automatic optical inspection.

IPG20N04S4L-08A Applications

Power switching applications.
Automotive systems.
High-efficiency designs.
General purpose power management.

IPG20N04S4L-08A FAQs

7 frequently asked questions generated from this part’s specifications.

What is the package type of IPG20N04S4L-08A?

PG-TDSON-8

What is the operating temperature range?

-55°C to +175°C

What is the maximum drain-source voltage?

40V

What is the continuous drain current rating?

20A at 25°C case temperature

What is the typical on-state resistance at VGS=10V?

7.2mΩ

What is the maximum power dissipation?

54W

What is the gate-source voltage rating?

±16V
